SecureCloud Hub. Azure-native zero-trust file sharing with identity, scanning and short-lived access.

SecureCloud Hub is a production-style Azure serverless platform for secure file sharing. It uses Microsoft Entra ID sign-in, direct-to-Blob uploads with short-lived write SAS, Event Grid triggered malware scanning, clean/quarantine storage separation, and short-lived read-only SAS downloads for approved files only.

Azure Functions Flex Consumption Terraform IaC GitHub Actions · OIDC Easy Auth · Entra ID Managed Identity + RBAC Event Grid malware pipeline Direct-to-Blob upload SAS
Engineering deep dive (code · IaC · monitoring) →
Uploads: 10-minute write SAS direct to Blob Downloads: 15-minute read SAS for clean files only CI/CD: passwordless GitHub Actions via OIDC
Sections Overview Business Impact Architecture Security Gallery Demo Tech stack Lessons

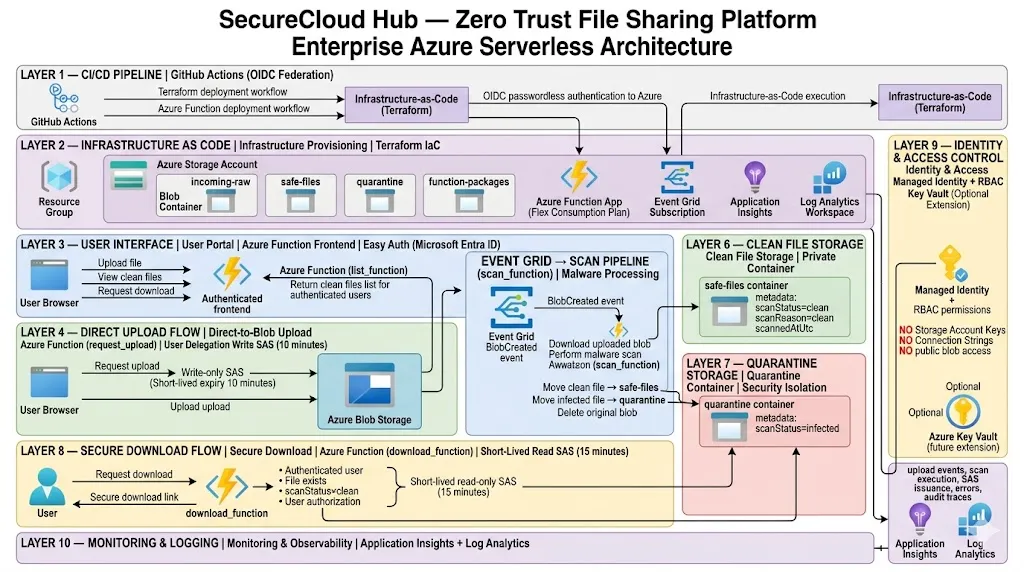

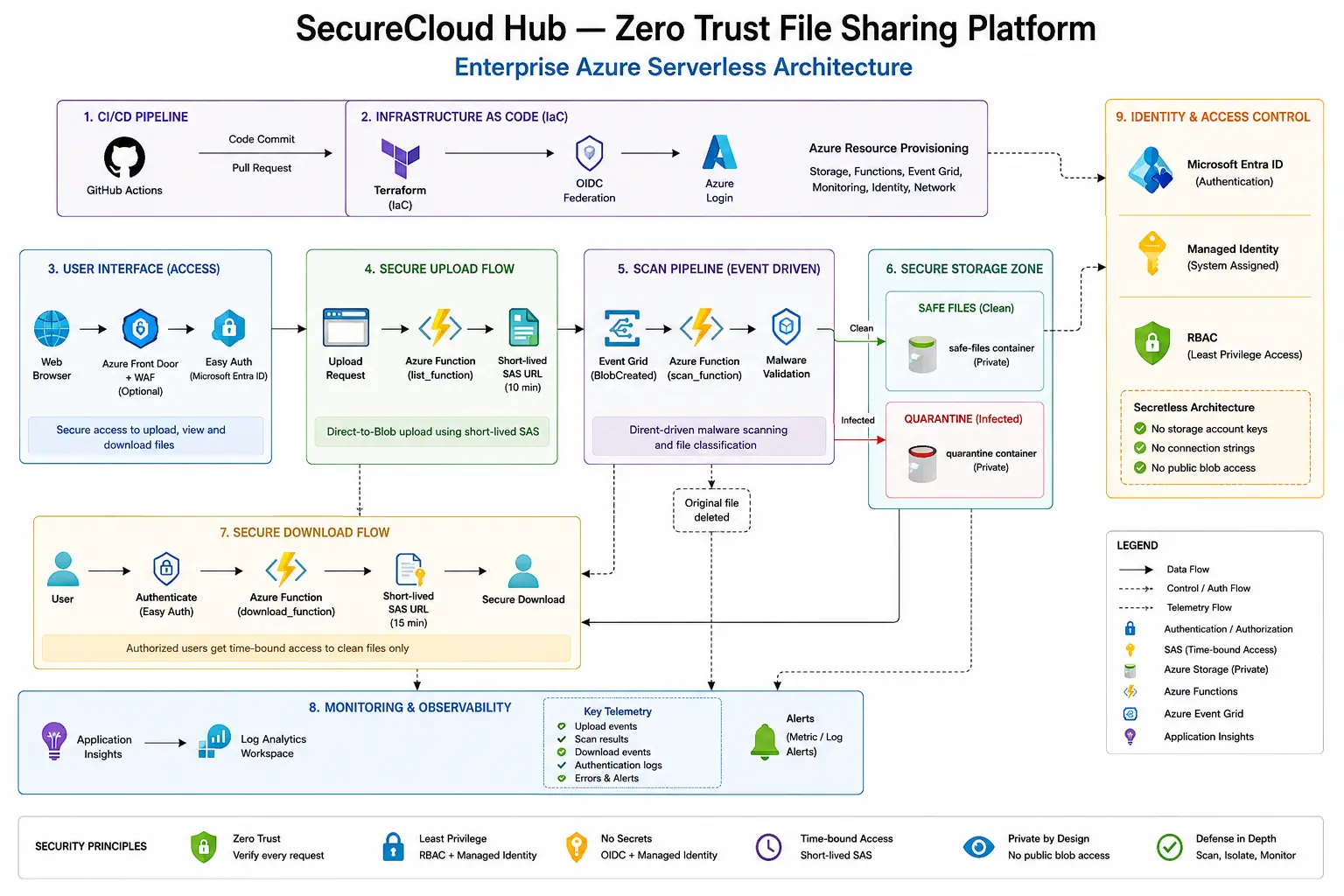

Architecture diagram for SecureCloud Hub
↗ View full project on GitHub
SecureCloud Hub – control surface
Private Blob only No stored secrets
Architecture snapshot Full diagram in gallery below.
GitHub Actions → Terraform → Flex Function App
Easy Auth (Entra ID) → Managed Identity + RBAC
Browser → request_upload → incoming-raw
→ Event Grid → scan_function
→ safe-files / quarantine
→ download_function → read SAS → Client download
Overview

What SecureCloud Hub solves

Many teams still move sensitive files using emailed attachments, public blob URLs, or long-lived shared SAS tokens. SecureCloud Hub demonstrates a stronger Azure-native pattern: users authenticate with Microsoft Entra ID, upload directly to private Blob Storage using short-lived write SAS, files are scanned automatically, and only clean files become downloadable through short-lived read-only SAS URLs.

The pattern

Zero-trust file distribution, from upload to download.

Files never sit in public containers. The browser never sees account keys. Uploads land in an untrusted container, Event Grid triggers the scan pipeline, and only clean files in safe-files are eligible for user-scoped SAS downloads.

  • Microsoft Entra ID sign-in is enforced with Easy Auth before frontend or API access.
  • Uploads use short-lived write SAS and go directly from browser to Blob Storage.
  • All uploaded content first lands in incoming-raw, never directly in clean storage.
  • scan_function moves clean files to safe-files and infected files to quarantine.
  • download_function validates identity and scanStatus=clean before issuing download SAS.
Key outcomes

Identity-first, serverless, and audit-friendly.

The platform is built as a realistic Azure reference implementation for zero-trust file handling, with strong coverage across IaC, automation, identity, storage security, and operational monitoring.

Easy Auth enforced Private containers only Event-driven scan pipeline Clean / quarantine separation Short-lived upload + download SAS Managed Identity + RBAC GitHub Actions + OIDC
Business impact

Business value delivered by SecureCloud Hub.

SecureCloud Hub translates security engineering into practical business outcomes by reducing unsafe file-sharing risk, improving auditability, and enforcing identity-first access across the full upload, scan, and download workflow.

  • Reduced the risk of malware distribution by enforcing file scanning before users can download approved content.
  • Minimized data exposure by issuing short-lived SAS URLs for uploads and downloads instead of permanent public links.
  • Improved compliance readiness through audit-friendly logging of upload, scan, quarantine, and download events.
  • Eliminated storage key exposure risk by using Managed Identity, RBAC, and passwordless GitHub Actions OIDC deployment.
  • Enabled secure internal file sharing without relying on email attachments, public blob access, or long-lived shared links.
  • Improved operational control by separating untrusted uploads, clean files, and quarantined files into dedicated private containers.
Zero-trust principles & capabilities

Zero Trust by Design

SecureCloud Hub uses private storage, enforced sign-in, managed identity, time-limited SAS, and a full content-safety pipeline. Every stage reduces implicit trust and narrows the blast radius of a leaked link, invalid upload, or misrouted request.

Zero-trust principle
Private by default

Storage accounts disable anonymous blob access. All containers are private, and the only valid data paths are through short-lived upload SAS or authenticated download requests.

Private Blob Storage No public blob URLs
Zero-trust principle
Identity-first access

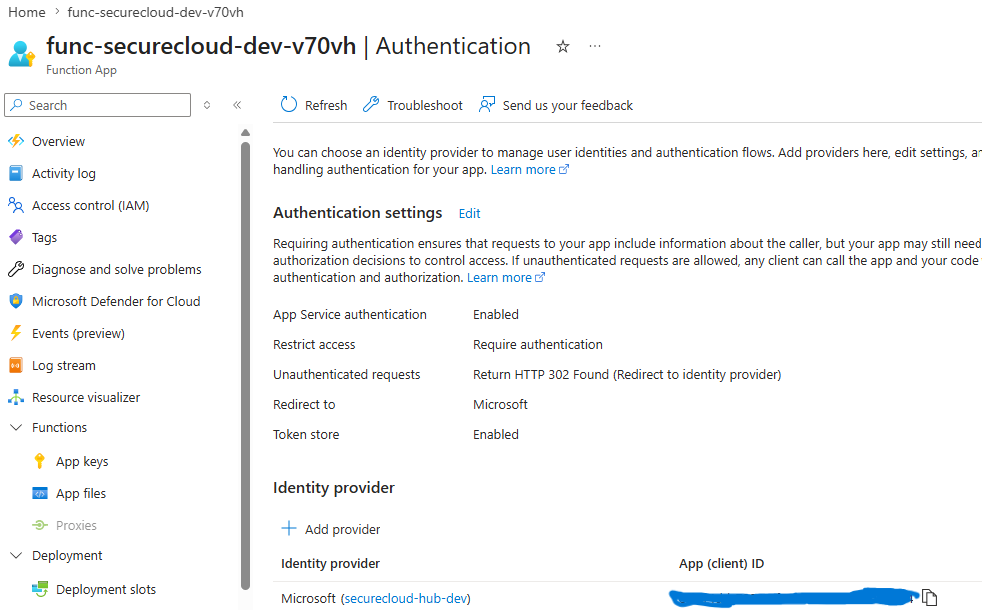

Easy Auth with Microsoft Entra ID is enabled on the Function App. Unauthenticated users are redirected to sign in before they can reach the frontend or APIs.

Easy Auth enforced X-MS-CLIENT-PRINCIPAL
Zero-trust principle
Least-privilege, short-lived access

Uploads use write-only SAS with a short expiry window. Downloads use read-only SAS after backend checks. Access is per-file and time-bounded, not broad or permanent.

Write SAS (10 min) Read SAS (15 min) Per-file scope
Content safety
Event-driven malware scanning

Uploads are treated as untrusted input. Event Grid detects new blobs in incoming-raw and triggers scan_function, which adds scan metadata and promotes or isolates content.

incoming-raw → safe-files/quarantine Event Grid trigger
Resilience & lifecycle
Versioning, soft delete, and cleanup

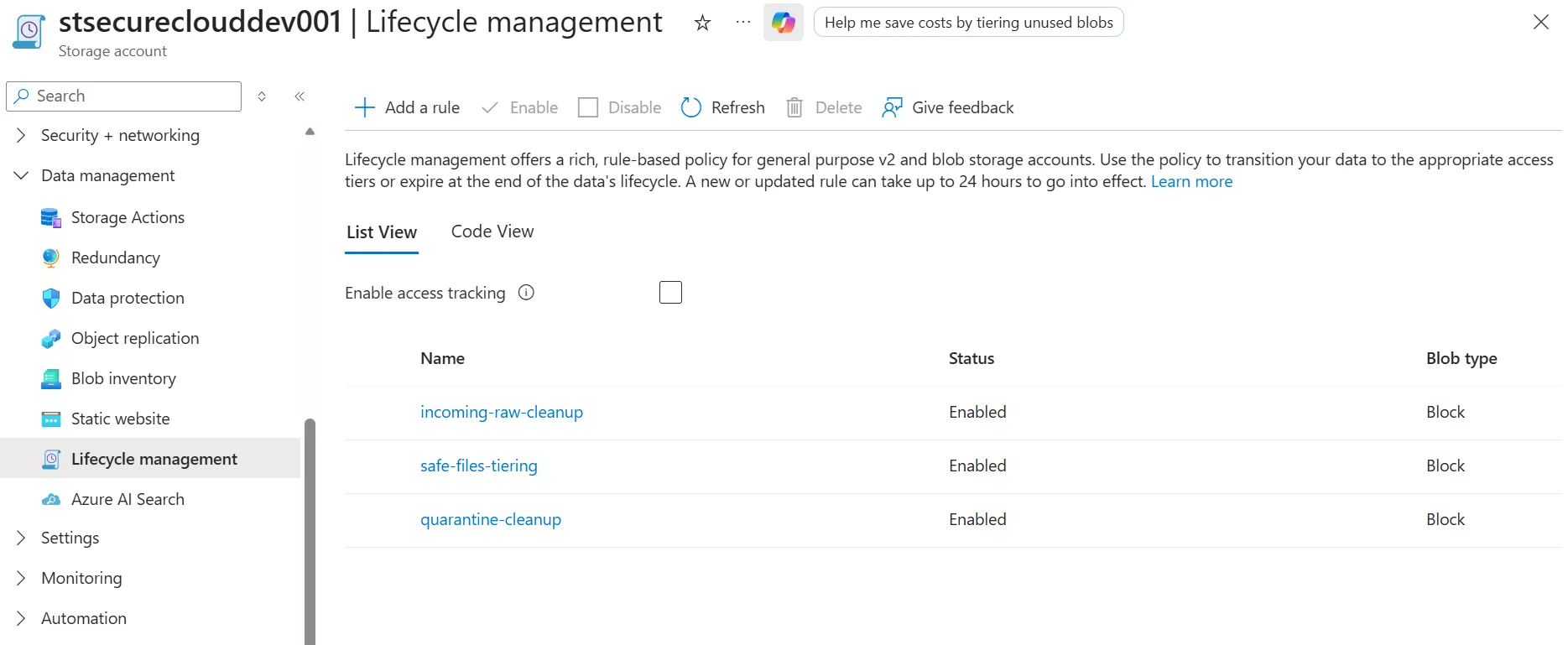

Versioning and retention policies help protect data from accidental deletion and control costs, while quarantine content is purged on a shorter schedule than clean files.

Versioning Soft delete Lifecycle rules
Platform feature
IaC + passwordless CI/CD

Terraform provisions the platform, and GitHub Actions deploys it using OpenID Connect federation. There are no long-lived pipeline secrets or storage keys embedded in the application flow.

Terraform GitHub Actions + OIDC No stored client secrets
Azure architecture

From Upload Request to Secure Download.

SecureCloud Hub is built from discrete Azure components that map directly to real deployed resources and real Python Functions. The platform is fully rebuildable through Terraform and mirrors a production serverless design.

Logical components

  1. 1

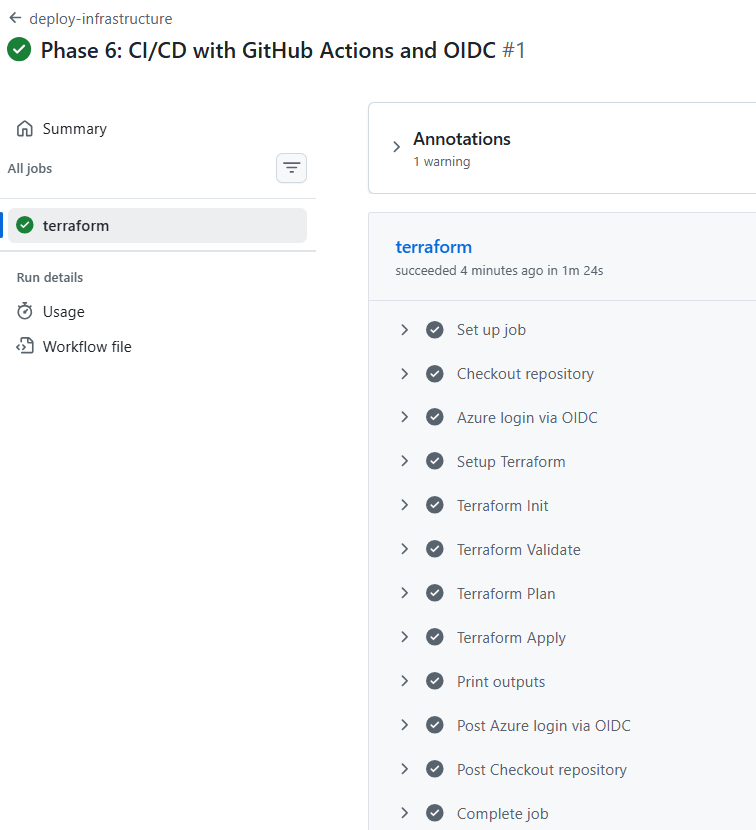

    GitHub Actions CI/CD
    deploy-infrastructure · deploy-application
    GitHub Actions deploys infrastructure and Function code using OIDC federation, avoiding long-lived Azure credentials.
    OIDC login Infra / app separation
  2. 2
    Terraform IaC layer
    Resource Group · Storage · Function App · Event Grid · Monitoring

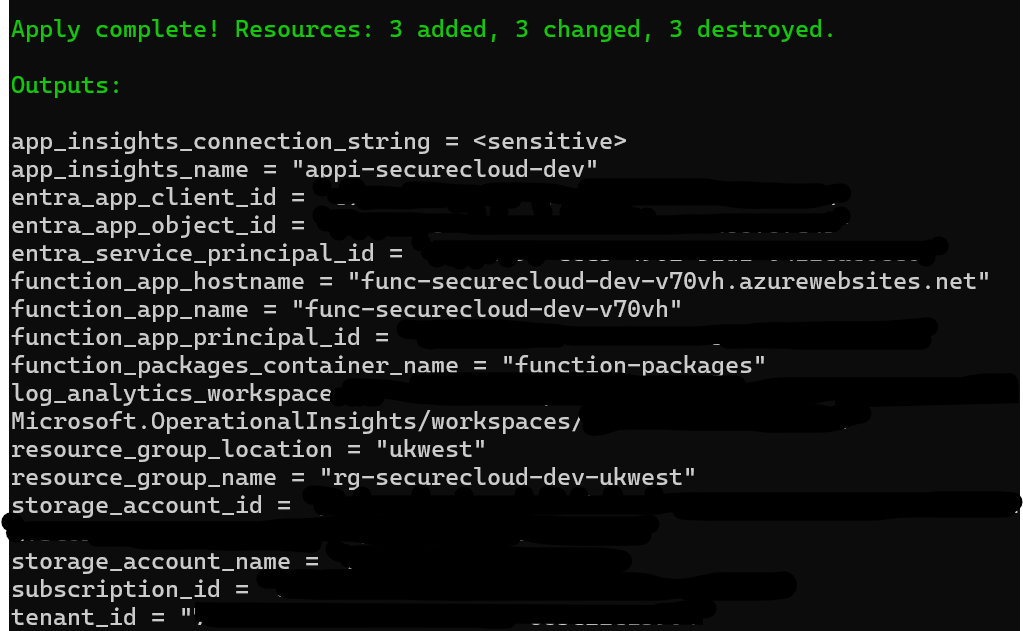

    Terraform provisions the storage account, containers, Flex Function App, Event Grid subscription, monitoring resources, and RBAC assignments.
  3. 3
    Frontend + Easy Auth
    frontend Function + Microsoft Entra ID
    The frontend is served through the Function App, and Easy Auth forces Microsoft sign-in before users can see files or request operations.
    frontend Easy Auth
  4. 4
    Upload SAS issuer
    request_upload_function
    The backend creates a short-lived write-only SAS URL for the authenticated user, scoped to their blob path in incoming-raw.
  5. 5

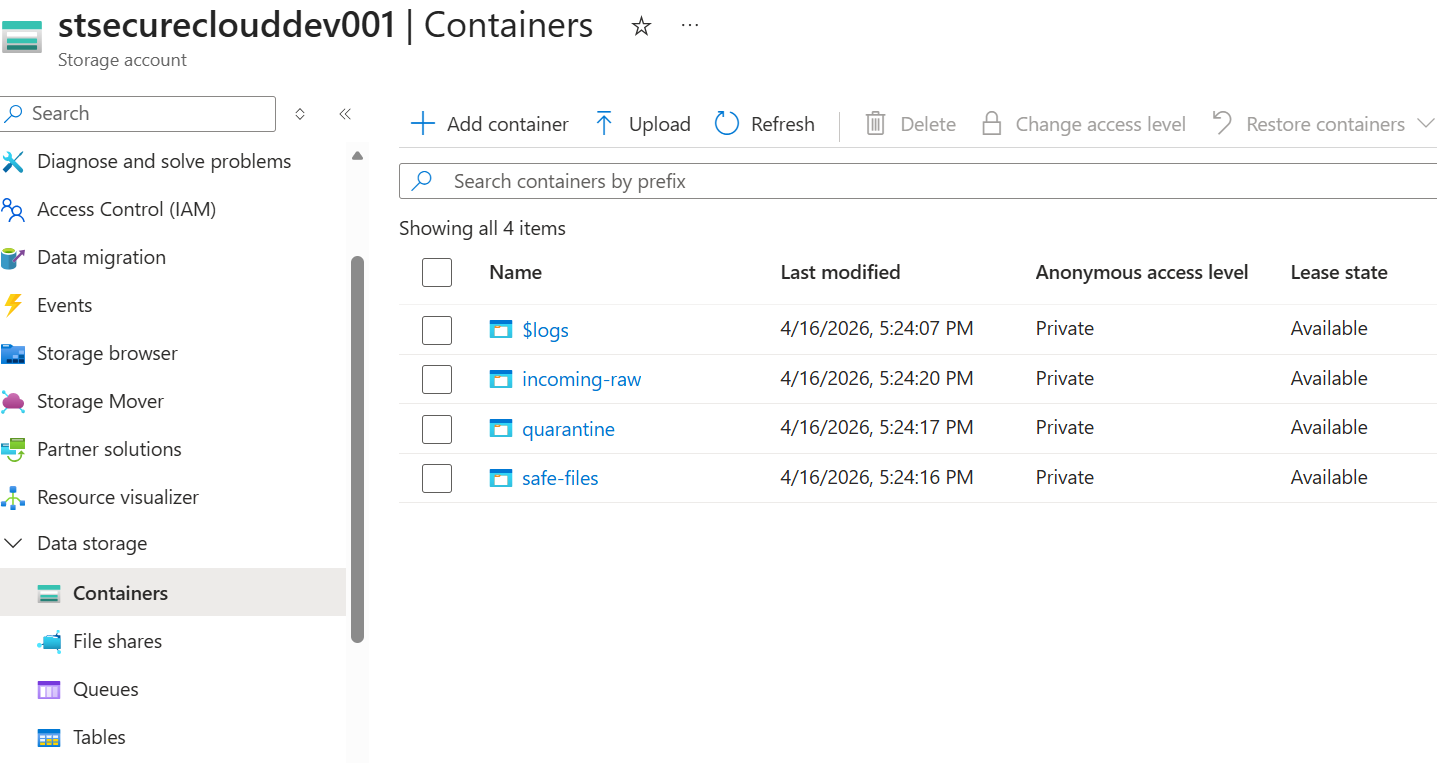

    Storage account + containers
    incoming-raw · safe-files · quarantine · function-packages

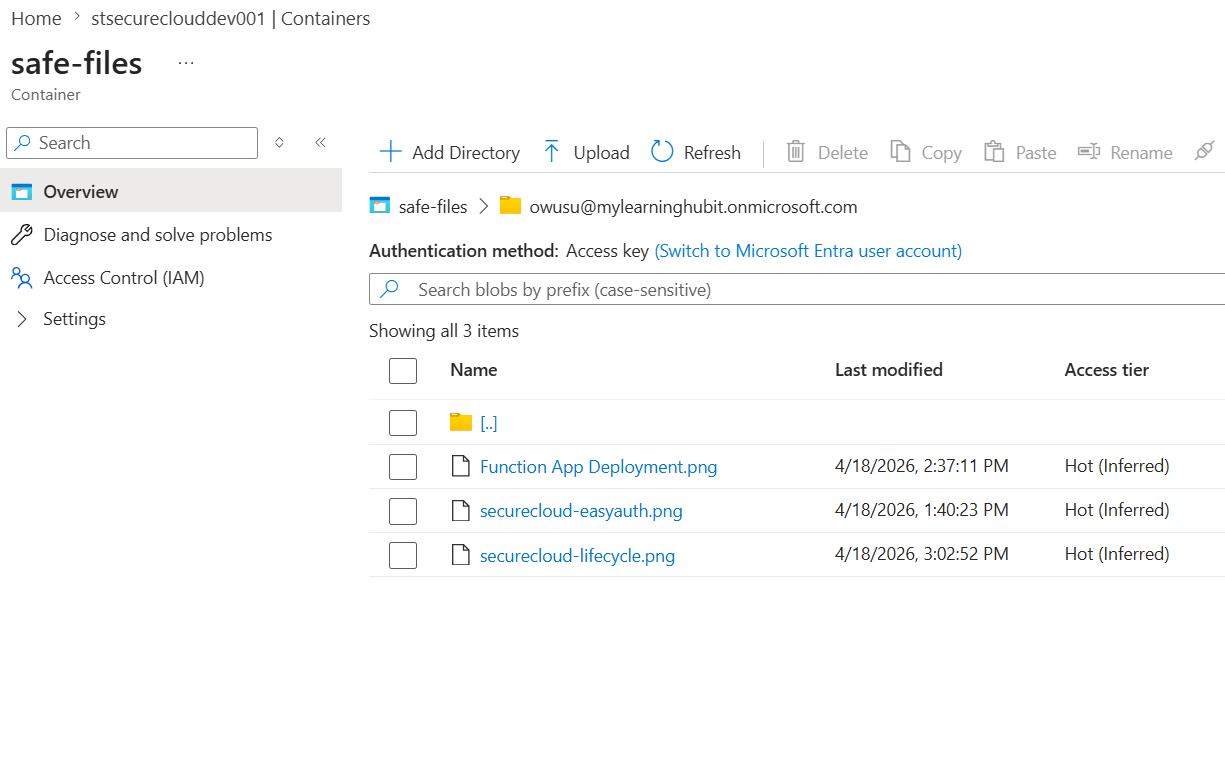

    Files move across private containers according to trust state. Clean files never mix with unscanned or infected content.
  6. 6

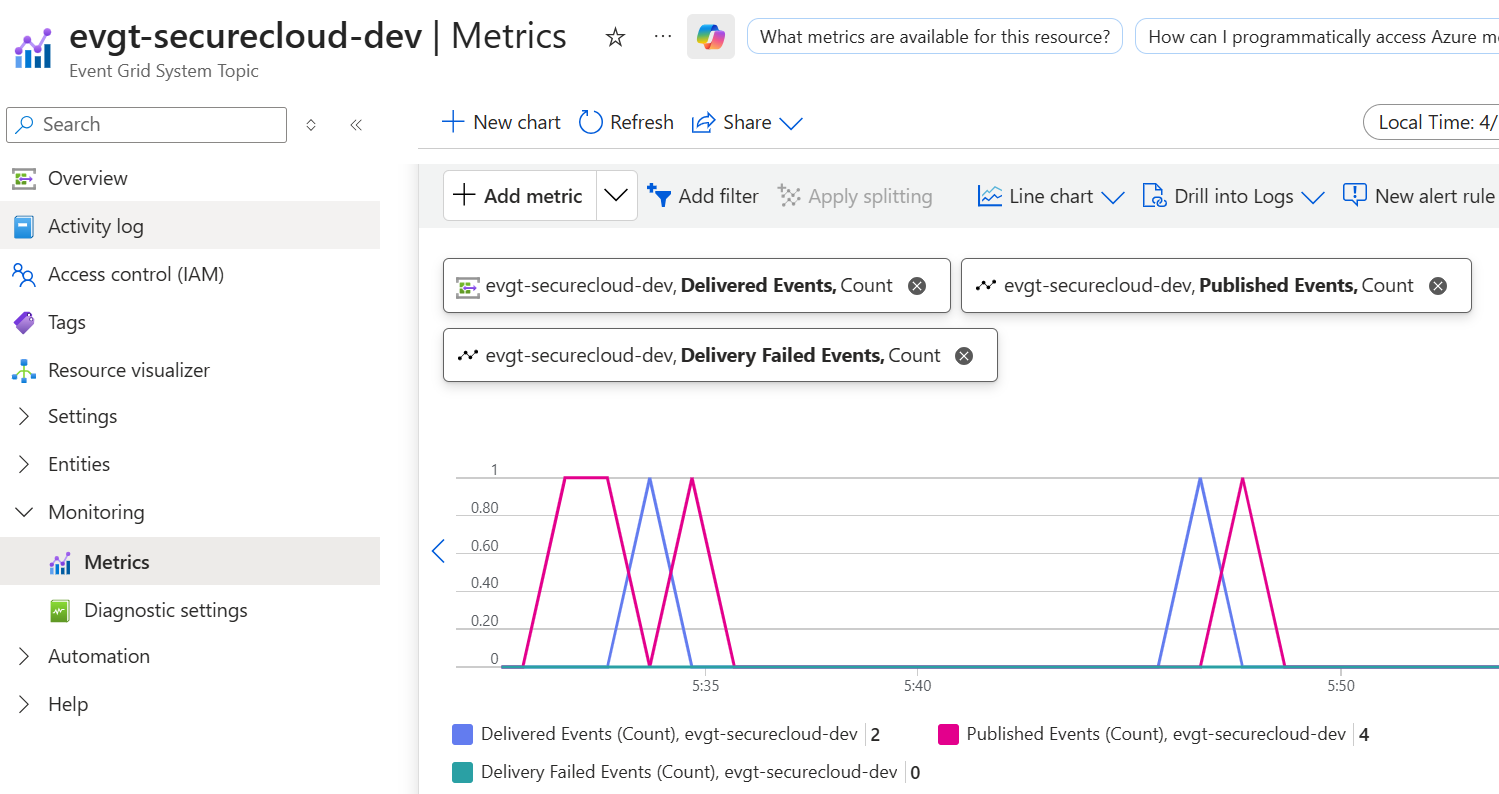

    Event Grid + scan_function
    BlobCreated → scan pipeline
    Event Grid watches incoming-raw and triggers scan_function when new uploads arrive.
  7. 7
    Clean file listing
    list_function
    The frontend retrieves only the authenticated user's clean files from safe-files, using user-scoped blob paths.
  8. 8

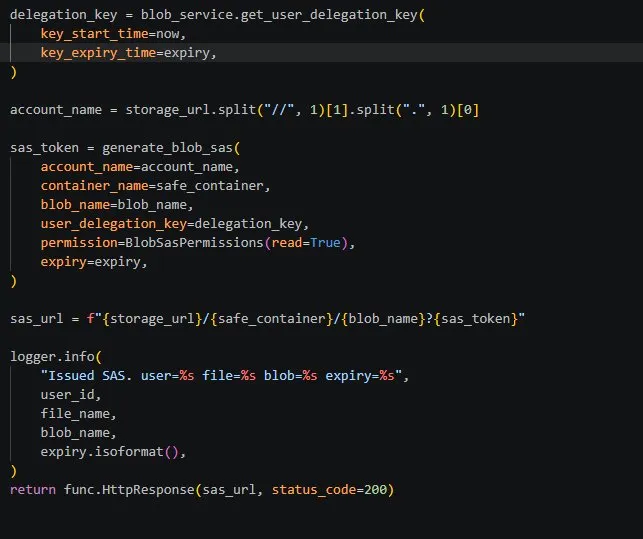

    Secure download SAS generator
    download_function
    The backend checks identity, blob existence, and scanStatus=clean, then issues a short-lived read-only SAS URL.
  9. 9

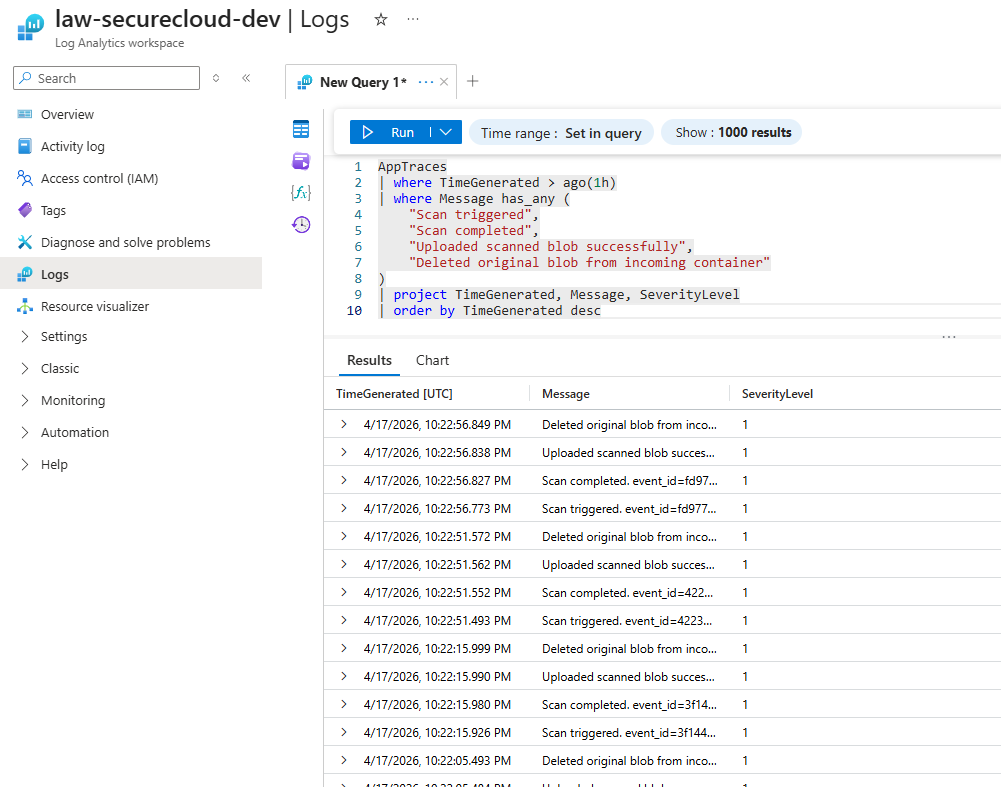

    Monitoring & observability
    Application Insights · Log Analytics
    Logs capture upload SAS issuance, scan execution, clean/infected outcomes, and secure download activity for troubleshooting and auditability.

End-to-end workflow (high-level)

  1. 1
    User signs in with Microsoft
    The browser accesses the Function App frontend and is authenticated through Easy Auth with Microsoft Entra ID.
  2. 2
    User requests upload SAS
    The frontend calls request_upload_function, which returns a short-lived write-only SAS URL.
  3. 3
    Browser uploads directly to Blob
    The selected file is uploaded directly into incoming-raw/<user-id>/filename without streaming through the Function App.
  4. 4
    Event Grid triggers scan
    BlobCreated events from incoming-raw invoke scan_function.

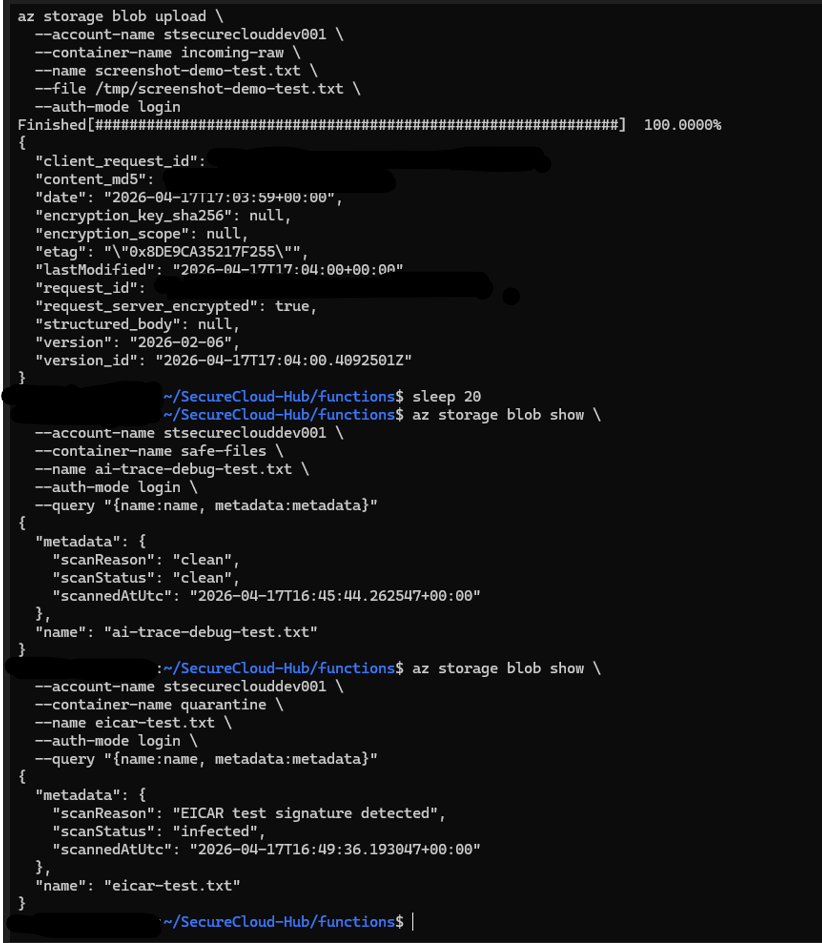

  5. 5
    File is scanned and tagged
    The scan pipeline writes metadata including scanStatus, scanReason, and scannedAtUtc.
  6. 6
    Promote or quarantine
    Clean files move to safe-files. Infected files move to quarantine.
  7. 7
    User refreshes clean file list
    The frontend calls list_function and shows only clean files belonging to the authenticated user.
  8. 8
    User requests secure download link
    download_function validates the blob and generates a short-lived read-only SAS URL if the file is approved.
  9. 9
    Browser downloads from Storage
    The user downloads the file directly from Blob Storage, and the link expires automatically after the SAS window.
Security controls & hardening

Defense-in-Depth Architecture.

SecureCloud Hub layers security across identity, storage, application flow, and operations. It minimizes shared secrets, enforces private-by-default storage, and prevents unscanned content from ever being treated as trusted.

Storage hardening
  • Storage account public blob access is disabled and all containers remain private.
  • Files are separated into incoming-raw, safe-files, and quarantine containers.
  • CORS is scoped so the frontend can upload directly to Blob Storage with SAS, without opening broad origins.
  • Lifecycle rules manage retention and cleanup for raw, safe, and quarantined content.
Identity-first access
  • Easy Auth blocks unauthenticated access before any application code runs.
  • The backend derives user identity from platform headers rather than trusting user-supplied identifiers.
  • Managed Identity + RBAC replace connection strings and account keys for storage access.
  • User-scoped blob paths ensure users only list and download their own files.
Malware & content safety
  • All uploads are treated as untrusted and land only in incoming-raw.
  • Event Grid triggers scan_function automatically for new uploads.
  • The scan pipeline writes metadata and promotes only clean content.
  • download_function refuses SAS issuance unless scanStatus=clean.
Secrets & CI/CD
  • GitHub Actions authenticates to Azure using OIDC federation, not stored client secrets.
  • The live platform minimizes secrets by using Managed Identity and RBAC end-to-end.
  • Key Vault is optional in this implementation and reserved for future secret-backed integrations.
  • Terraform keeps infrastructure changes consistent, reviewable, and reproducible.
Future evolution

The current platform already demonstrates strong zero-trust patterns. Future hardening could extend beyond the MVP:

  • Add Entra ID group-based authorization for more granular sharing rules.
  • Use private endpoints or Application Gateway / WAF for additional network isolation.
  • Expand monitoring queries and alerts for suspicious download or upload patterns.
  • Introduce an admin workflow for quarantine review and operational approvals.

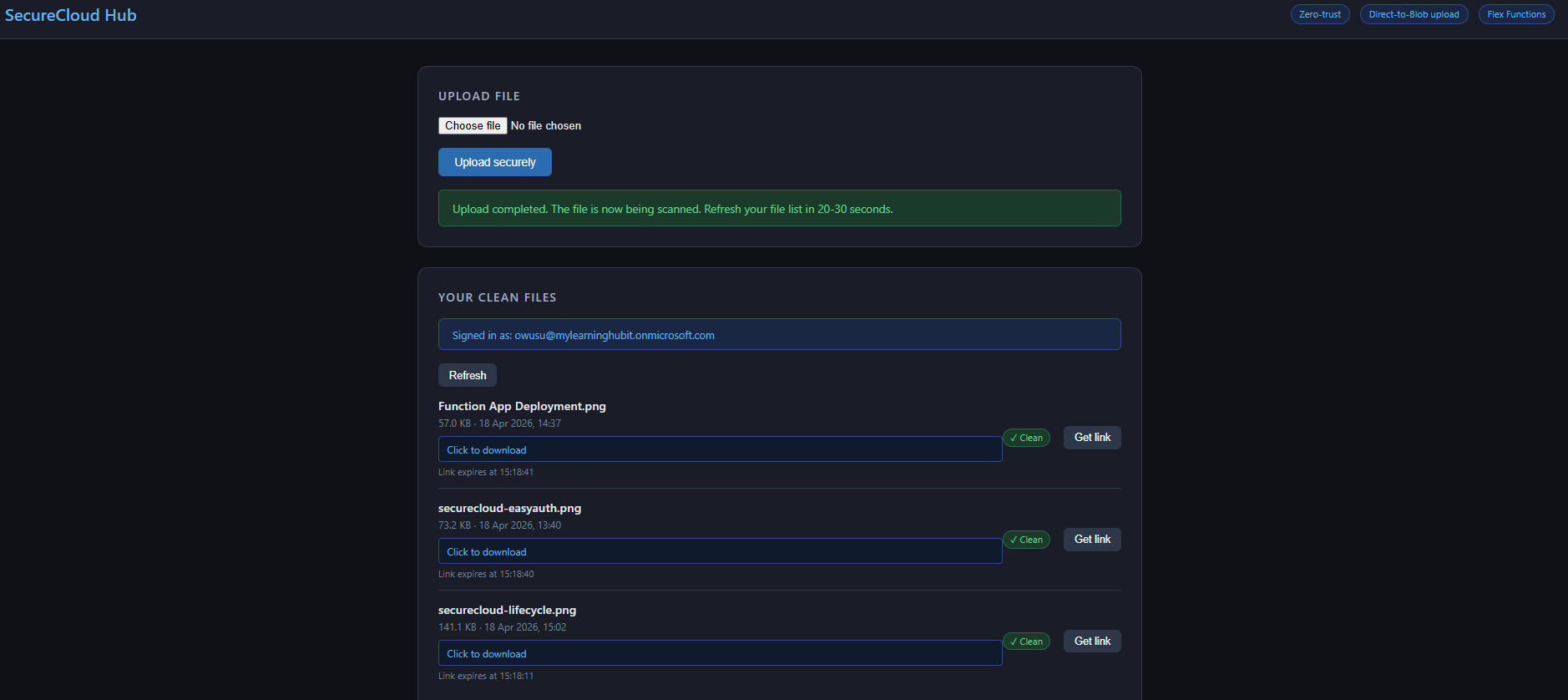

Demo – end-user experience

How SecureCloud Hub Works

Try the portal below. Select any file to simulate the full zero-trust flow: SAS generation, direct-to-Blob upload, Event Grid malware scanning, and secure download link creation. No real files are uploaded and no Azure storage or cost is involved.

SecureCloud Hub – Portal
Zero-trust file sharing · Azure serverless · portfolio demo
Safe simulation – no real uploads
Secure File Upload
Signed in
recruiter@contoso.com
✓ Entra ID
File Status Link
No files yet — upload one above
Workflow Status
1 User authenticated with Microsoft Entra ID
2 Frontend requests short-lived upload SAS
3 Browser uploads directly to incoming-raw
4 Event Grid triggers malware scan function
5 Clean files promoted to safe-files
6 Download function issues read-only SAS link
1
Sign in with Microsoft 365

The user opens the frontend and is authenticated through Easy Auth with Microsoft Entra ID.

2
Request upload SAS

The frontend calls request_upload_function and receives a short-lived write-only SAS URL.

3
Upload directly to incoming-raw

The browser uploads the file directly to Blob Storage without sending the file body through the Function App.

4
Automatic malware scanning

Event Grid detects the new blob and triggers scan_function, which scans and classifies the file.

5
Clean files appear in the list

list_function returns only the authenticated user's clean files from safe-files.

6
Generate secure download link

download_function validates the file and returns a short-lived read-only SAS URL for direct download.

Tech stack

Azure-native, IaC-driven, and identity-first from day one.

SecureCloud Hub combines serverless compute, private Blob Storage, event-driven processing, managed identity, and repeatable infrastructure provisioning into one coherent Azure build.

Core platform
  • Azure Functions Flex Consumption for frontend, upload, listing, download, and scan logic.
  • Azure Blob Storage with private containers and direct-to-Blob upload SAS.
  • Azure Event Grid for BlobCreated-triggered malware scanning.
  • Application Insights and Log Analytics for observability.
Identity & security
  • Microsoft Entra ID + Easy Auth for enforced sign-in.
  • Managed Identity + RBAC for storage access.
  • User delegation SAS for short-lived read access.
  • Optional Key Vault extension for future secret-backed integrations.
DevOps & automation
  • Terraform for Azure resources, storage policy, and application infrastructure.
  • GitHub Actions with OIDC for passwordless Azure deployment.
  • Remote Function App publishing and environment-based deployment flow.
  • Operational logging and audit traces for runtime validation.
Project snapshot

SecureCloud Hub

A zero-trust Azure file-sharing platform with enforced Microsoft sign-in, direct-to-Blob upload SAS, event-driven malware scanning, clean/quarantine storage boundaries, and short-lived secure download links.

Zero-trust Azure Python Azure Functions Flex Consumption Terraform IaC GitHub Actions + OIDC Event Grid malware pipeline
Upload model
Browser → request_upload → short-lived write SAS → incoming-raw
Download model
download_function → short-lived read-only SAS → direct Blob download
Authentication
Easy Auth (Entra ID), sign-in required for all requests
Content safety
incoming-raw → Event Grid → scan_function → safe-files/quarantine
Identity model
Managed Identity + RBAC, no storage keys in application flow
CI/CD & IaC
Terraform + GitHub Actions with OIDC federation
Jump to full engineering deep dive →
Challenges & lessons learned

What I Learned Building SecureCloud Hub.

This project involved real architecture changes, real runtime debugging, and several production-style fixes. The strongest lessons came from evolving the design, not from copying a static template.

Switching from streamed uploads to direct-to-Blob upload SAS
›

Initially, a simpler upload-through-function pattern would have worked, but the stronger architecture is to issue an upload SAS and let the browser upload directly to Blob Storage.

  • Benefit: lower Function App load and more scalable upload handling.
  • Trade-off: required Storage CORS and tighter browser-side flow design.
  • Outcome: enterprise-grade upload path using short-lived write SAS.
Getting user-scoped blob paths correct end-to-end
›

The frontend and backend needed to agree on the difference between display names and real blob paths.

  • The UI shows the base file name.
  • The backend rebuilds the real blob path internally using the authenticated user's identity.
  • This prevents cross-user access attempts and keeps the trust boundary in the backend.
Reworking infrastructure for Flex Consumption
›

Migrating to Flex Consumption changed how the Function App had to be provisioned and configured.

  • Flex-specific configuration is different from classic Linux Consumption.
  • Some app settings and site config patterns had to be removed or changed.
  • Event Grid wiring and deployment flow had to be validated again after migration.
Solving real runtime issues in Event Grid and Easy Auth
›

The biggest engineering value came from troubleshooting real integration issues.

  • Event Grid subscriptions had to be recreated after infrastructure changes.
  • Easy Auth needed the runtime Event Grid webhook path excluded correctly.
  • Additional logging in scan_function and Application Insights was essential for proving the true runtime behavior.
