Weather Tracker. A cloud-native Azure application with containers, monitoring, CI/CD, and secure secret management.

This project started as a local FastAPI weather application and evolved into a production-style Azure platform. It uses Docker, Azure Container Registry, Azure Container Apps, structured logging, Application Insights, Azure Monitor alerts, GitHub Actions CI/CD, and Azure Key Vault with managed identity.

Azure Container Apps Docker + ACR GitHub Actions CI/CD Application Insights Azure Monitor alerts Key Vault + managed identity
Engineering deep dive (real FastAPI, Docker, CLI, CI/CD) → Open live Weather Tracker → View GitHub repo
Runtime: Azure Container Apps Image source: Azure Container Registry Security: Key Vault + managed identity
Sections Overview Architecture Security Gallery Validation Tech stack Lessons

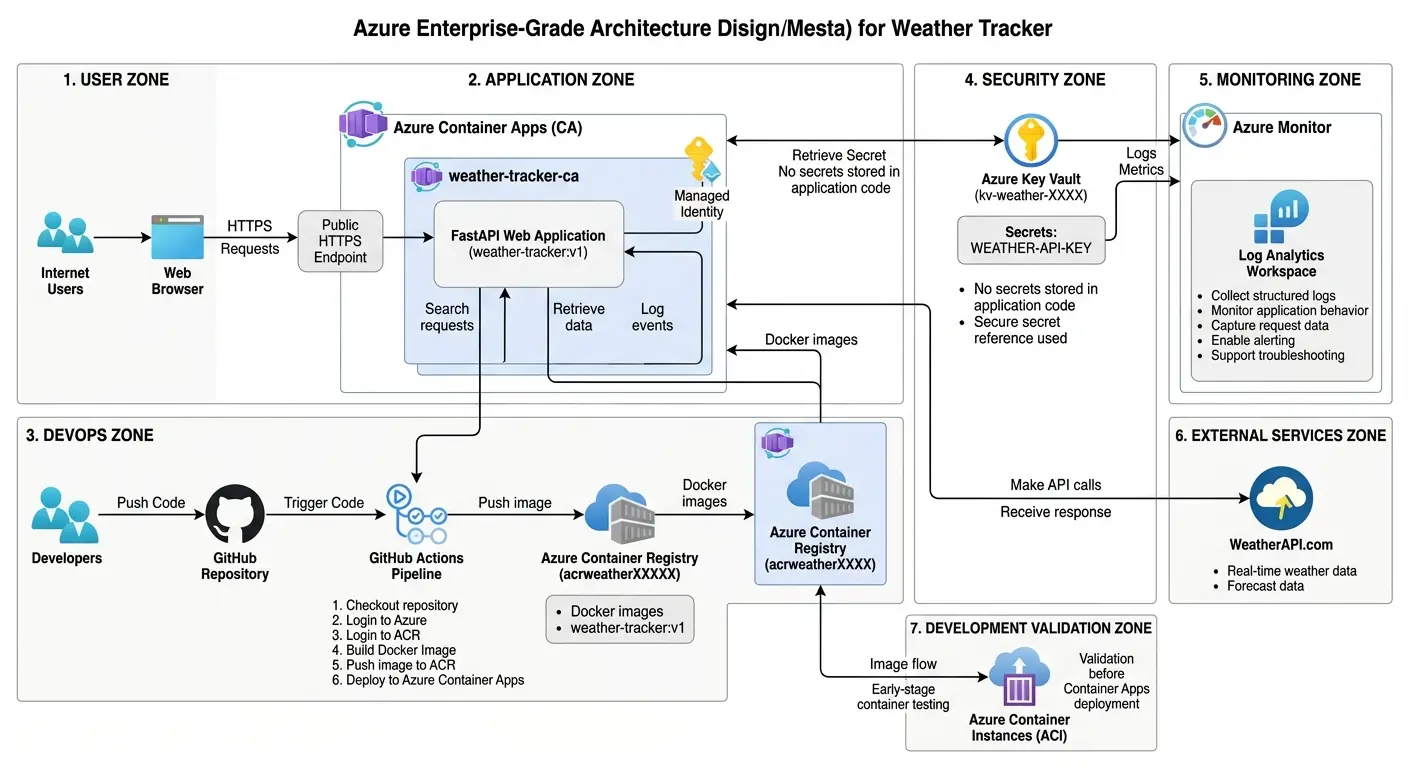

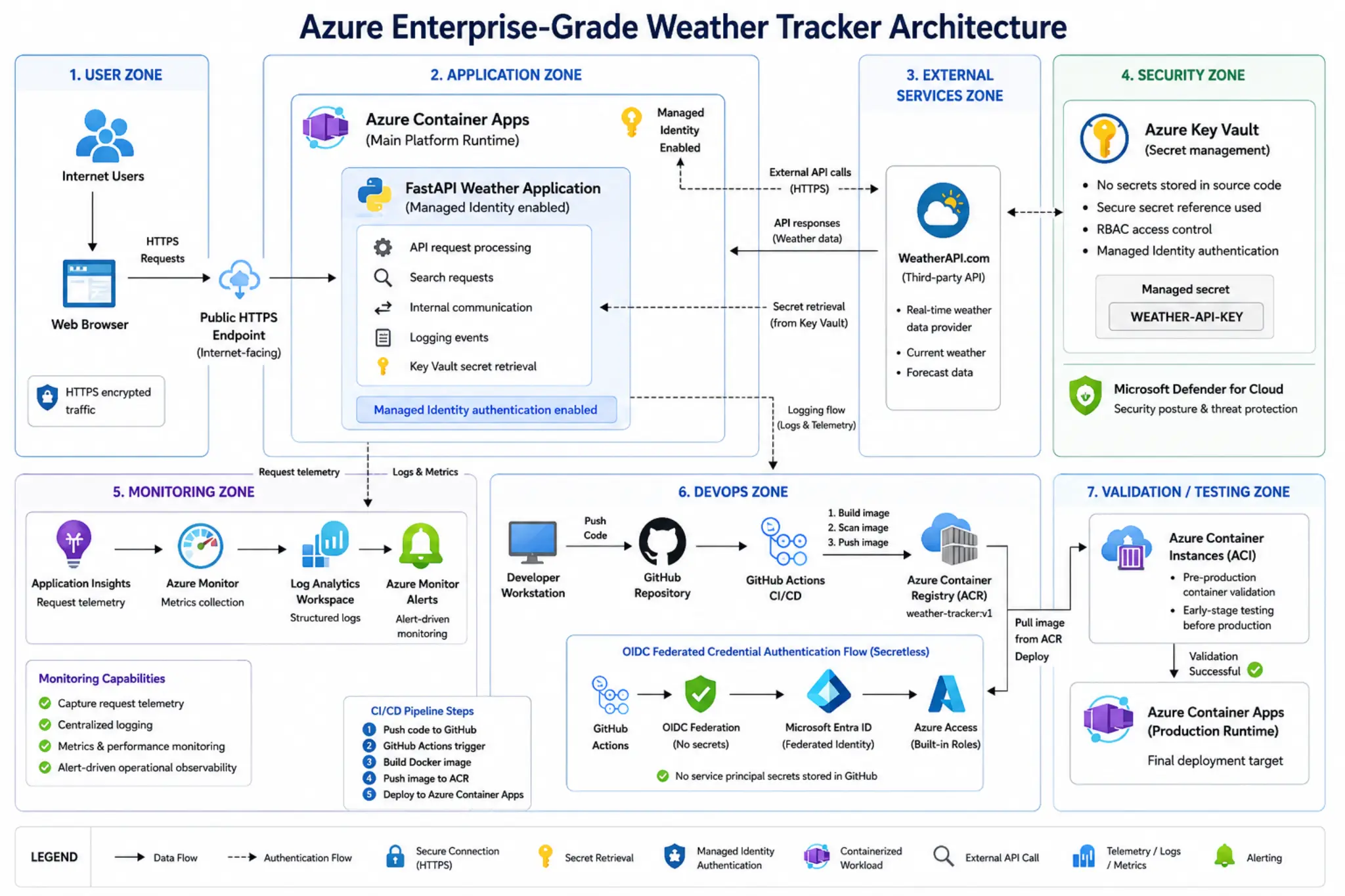

Architecture diagram for Weather Tracker Azure project
↗Open live Azure Container Apps URL
Cloud-native deployment path
Container Apps Azure Monitor Key Vault
Architecture snapshot Final project flow.
GitHub push → GitHub Actions → Docker build
→ Azure Container Registry → Azure Container Apps
→ FastAPI Weather App → WeatherAPI
→ Structured logs → Application Insights
→ Azure Monitor alert → Action Group email
→ Key Vault secret via managed identity
Overview

What this project demonstrates

This project demonstrates how a simple application can be engineered into a secure, observable, containerized Azure workload. The final architecture keeps the project focused: FastAPI Weather App → Structured Logging → Azure Monitor + Alerts → Docker → ACR → ACI validation → Azure Container Apps → GitHub Actions CI/CD → Azure Key Vault.

The engineering problem

Move beyond a local demo into a real Azure-hosted workload.

A local FastAPI app is not enough for a serious cloud portfolio. This build turns the application into a deployable service with runtime configuration, cloud monitoring, container packaging, automated deployment, and secret management.

  • Started with a local FastAPI weather app using WeatherAPI.
  • Deployed first to Azure App Service to prove cloud compute hosting.
  • Added Application Insights, structured logs, alerts, and email notifications.
  • Containerized the app and moved the production runtime to Azure Container Apps.
The finished outcome

A secure cloud-native application deployment path.

The final runtime uses Container Apps as the live platform, ACR as the image source, GitHub Actions for CI/CD, Azure Monitor for operational visibility, and Key Vault with managed identity for the WeatherAPI secret.

Develop Containerize Publish Deploy Monitor Secure
Security and operations

How the project was hardened and monitored

The project intentionally avoids being just a weather UI. The strongest parts are the operational and security layers.

Observability

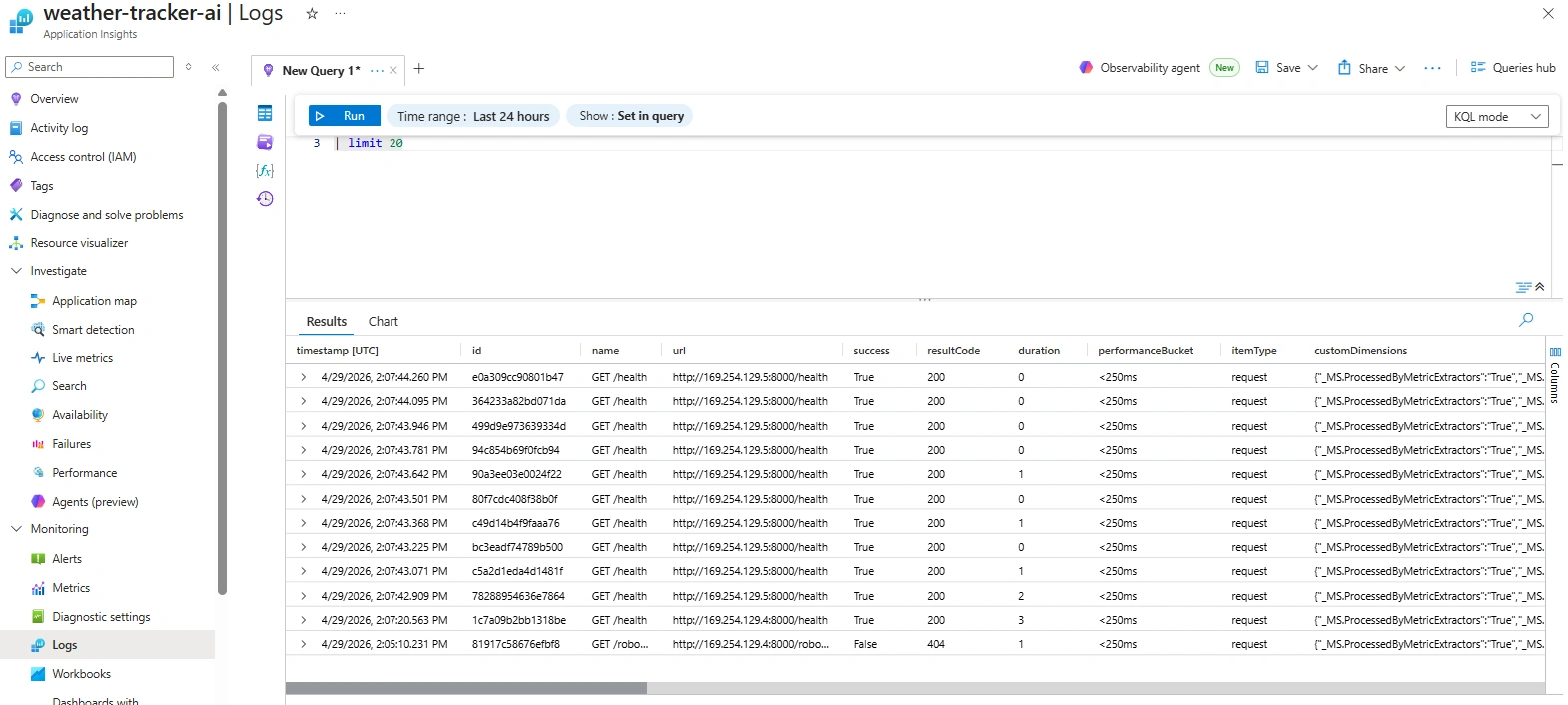

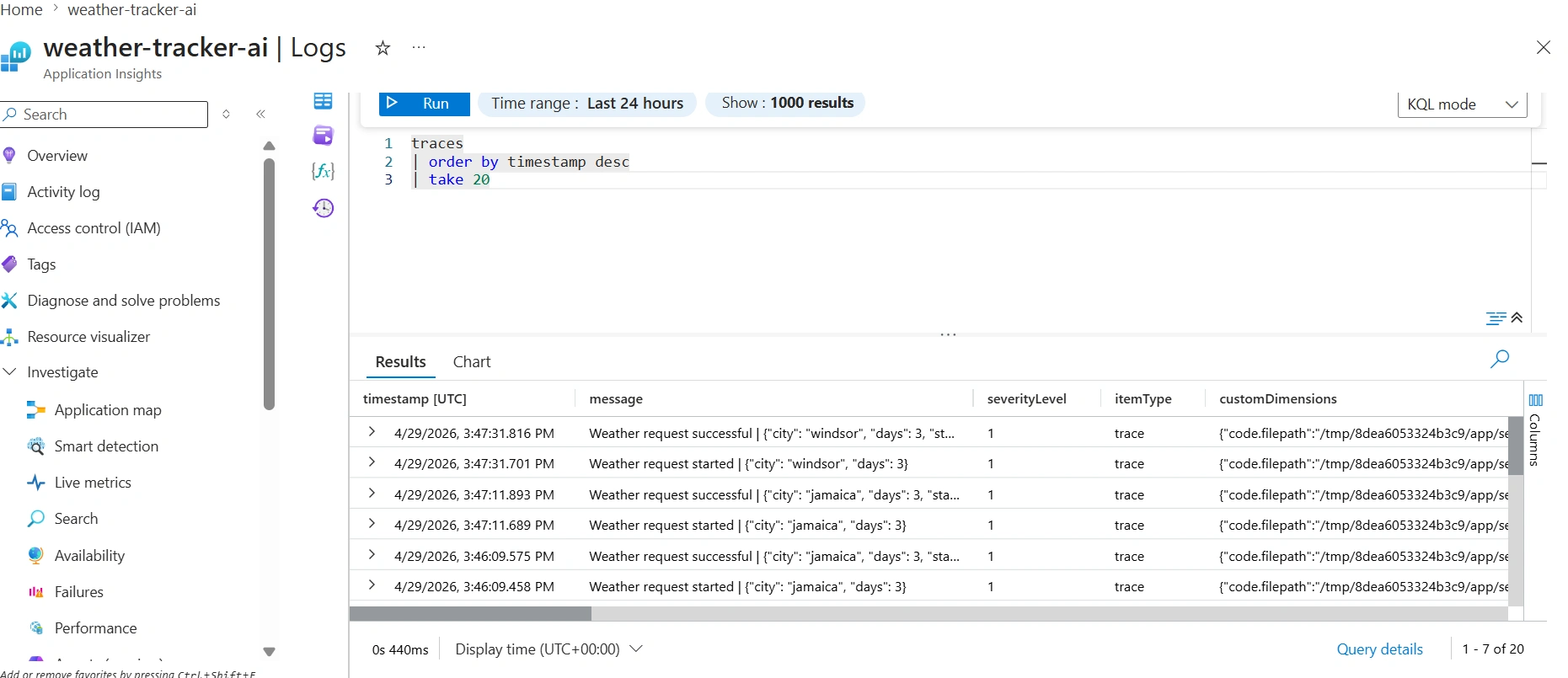

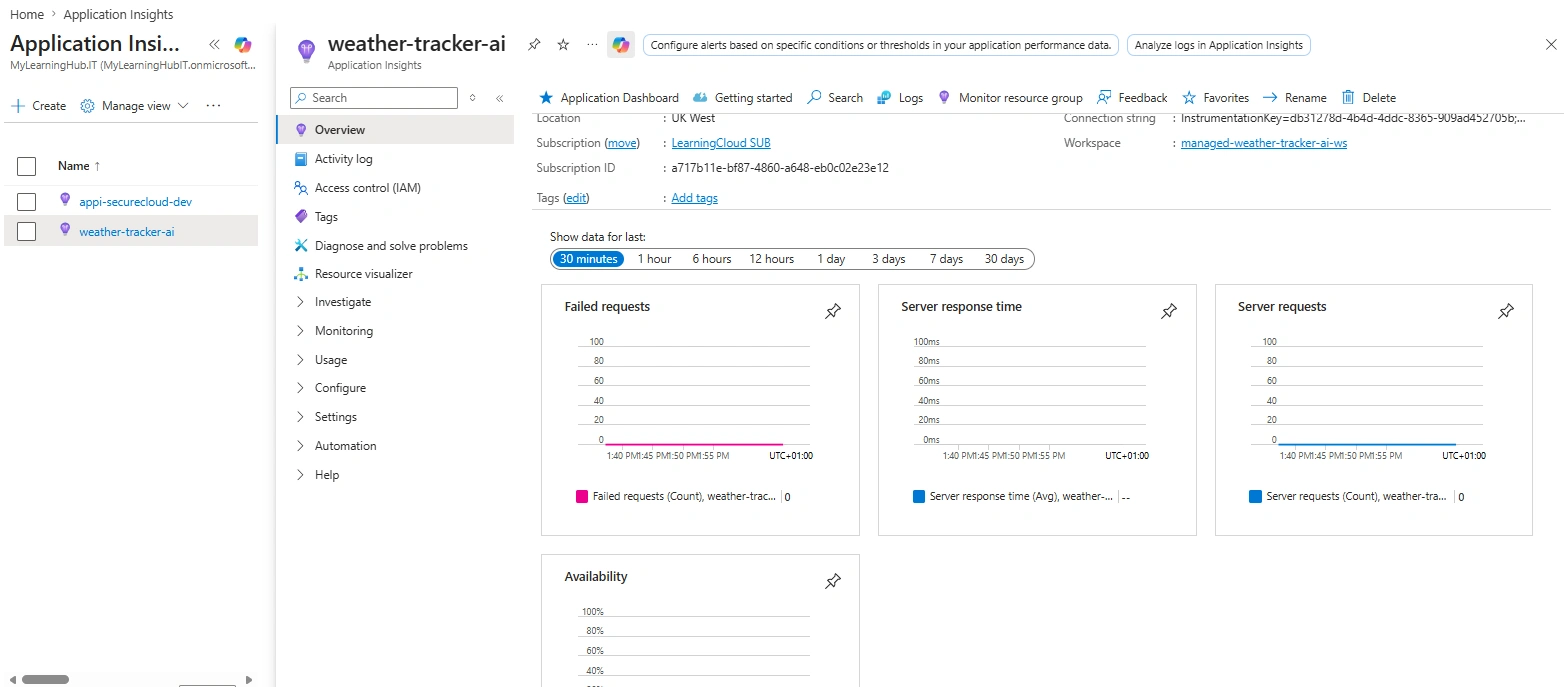

  • Application Insights captures request telemetry from the FastAPI application.

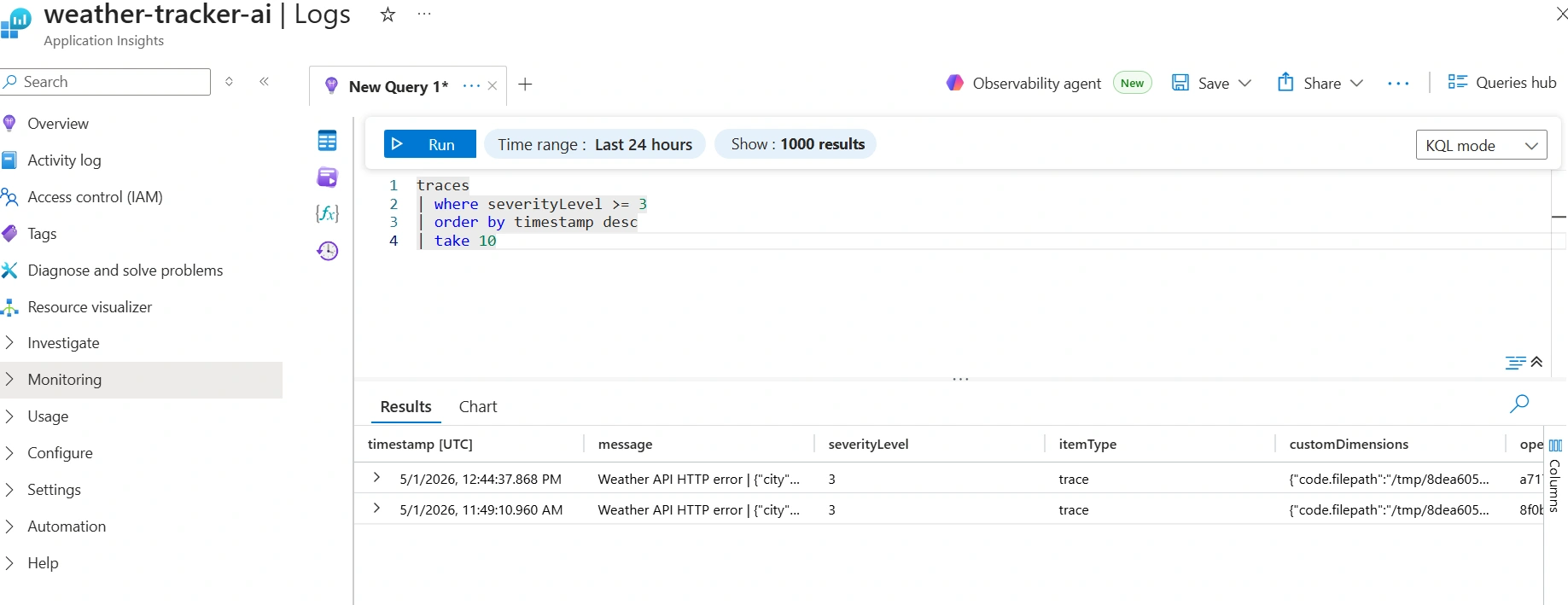

  • Structured Python logs capture weather API calls, success events, latency, and errors.

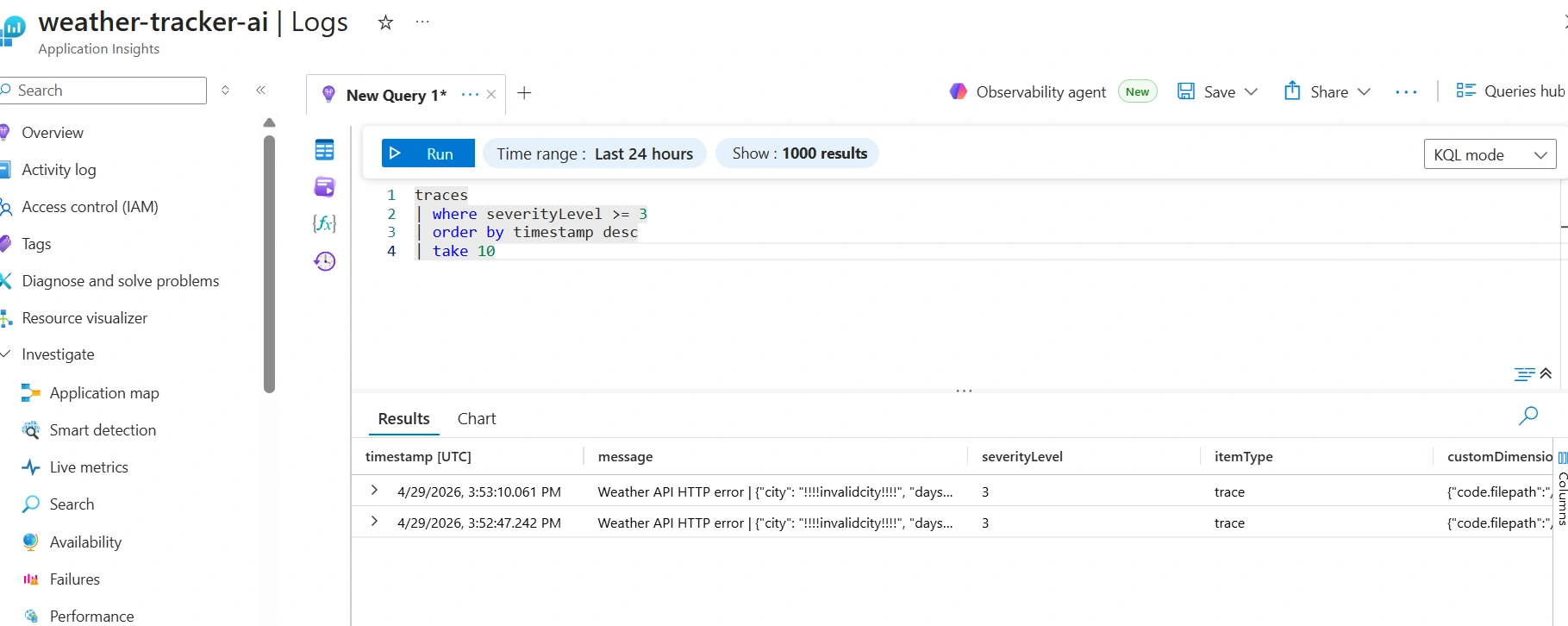

  • KQL queries validate requests, traces, and failure events.
  • Azure Monitor scheduled query alert fires when weather API failures are logged.
Secret management
  • Weather API key stored in Azure Key Vault.
  • Container App uses a system-assigned managed identity.
  • Managed identity granted Key Vault Secrets User using Azure RBAC.
  • Container App references the Key Vault secret without code changes or plaintext application secrets.
Azure architecture

From local FastAPI to secure Container Apps deployment.

The final platform follows a realistic cloud delivery path: application code is committed to GitHub, GitHub Actions builds a Docker image, the image is pushed to ACR, and Azure Container Apps runs the container with managed ingress and Key Vault-backed configuration.

Build and deployment flow

  1. 1
    FastAPI weather app
    Python 3.12 + Jinja + SQLite
    The app searches weather, renders forecast data, stores favourite cities, and exposes a health endpoint.
  2. 2
    Docker container
    Gunicorn + Uvicorn workers
    The application is packaged into a portable runtime using a production-style Dockerfile.
  3. 3
    Azure Container Registry
    Private container image storage
    The image is tagged and pushed to ACR, then updated through GitHub Actions.
  4. 4
    ACI validation
    Temporary cloud container test
    Azure Container Instances validates the image before the production runtime.
  5. 5
    Azure Container Apps
    Production-style container hosting
    Container Apps exposes the service over HTTPS, supports scale-to-zero, and runs the final workload.

Operations and security flow

  1. 1
    Application Insights telemetry
    Requests and application behaviour are collected for cloud diagnostics.
  2. 2
    Structured logs
    Weather API events are logged with JSON context including city, status code, and latency.
  3. 3

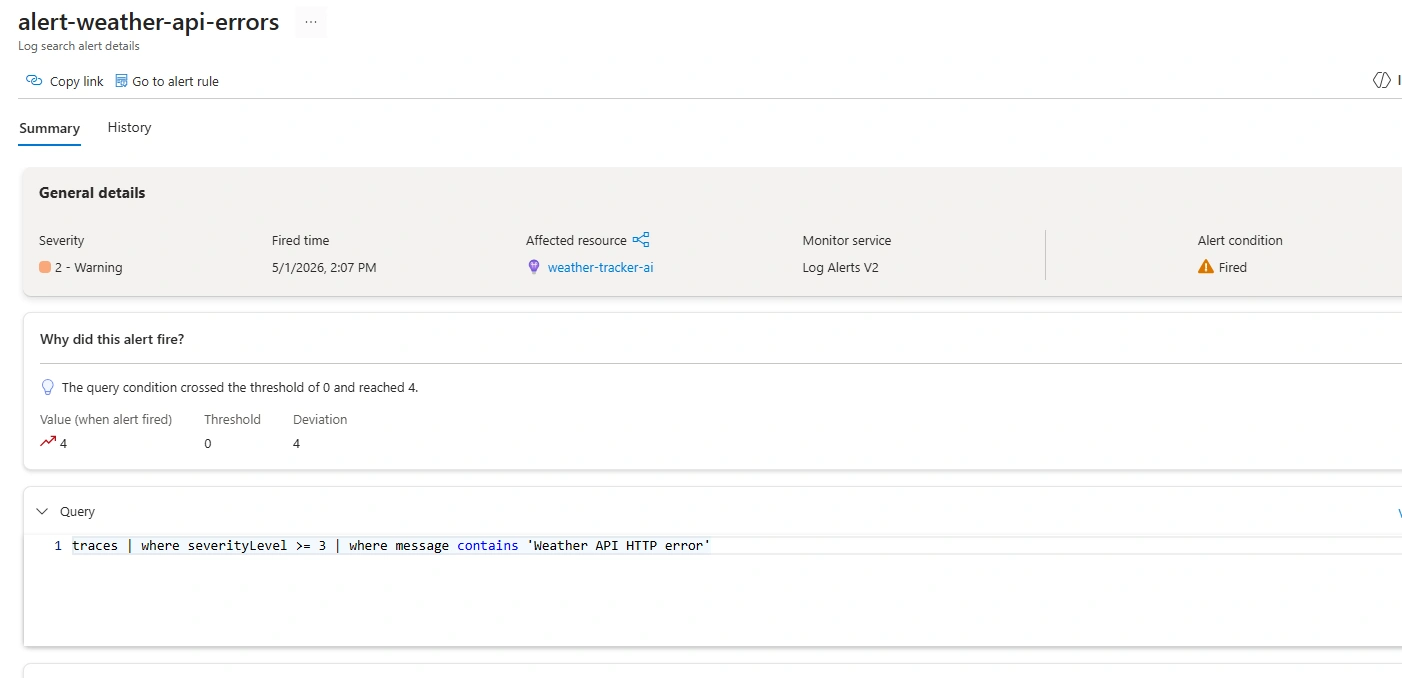

    Azure Monitor alerts
    KQL-based scheduled query alert detects Weather API HTTP errors.
  4. 4

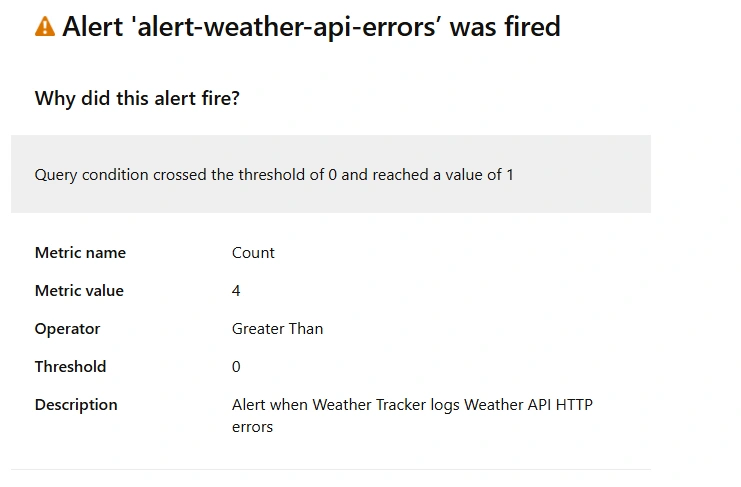

    Action Group email
    Alert events notify the operator through email.
  5. 5
    Key Vault secret reference
    The Container App reads the WeatherAPI key from Key Vault using managed identity.
Validation walkthrough

How the project was tested end to end.

The validation flow proves the app works at every stage: local runtime, Azure App Service, telemetry, Docker, ACR, ACI, Container Apps, CI/CD, and Key Vault-backed secret delivery.

1

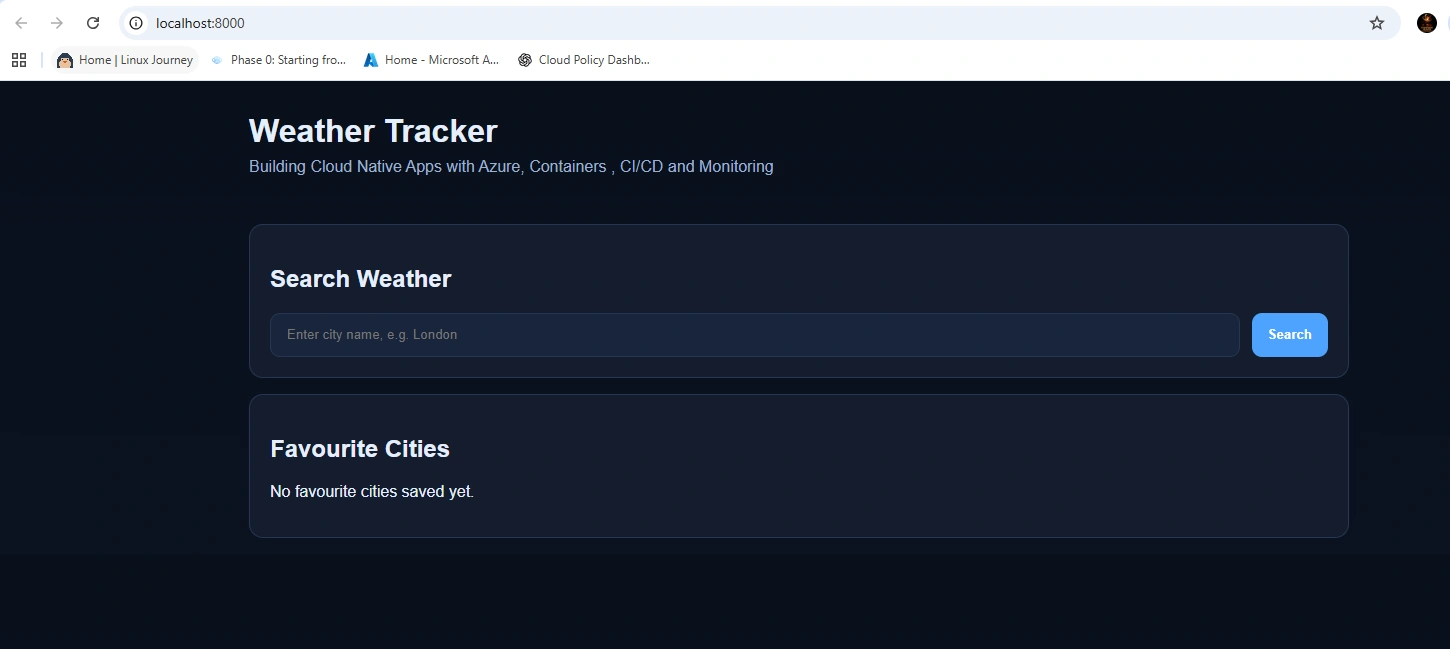

Build local MVP

Created a FastAPI app with city search, forecast display, favourites, and a health endpoint.

2

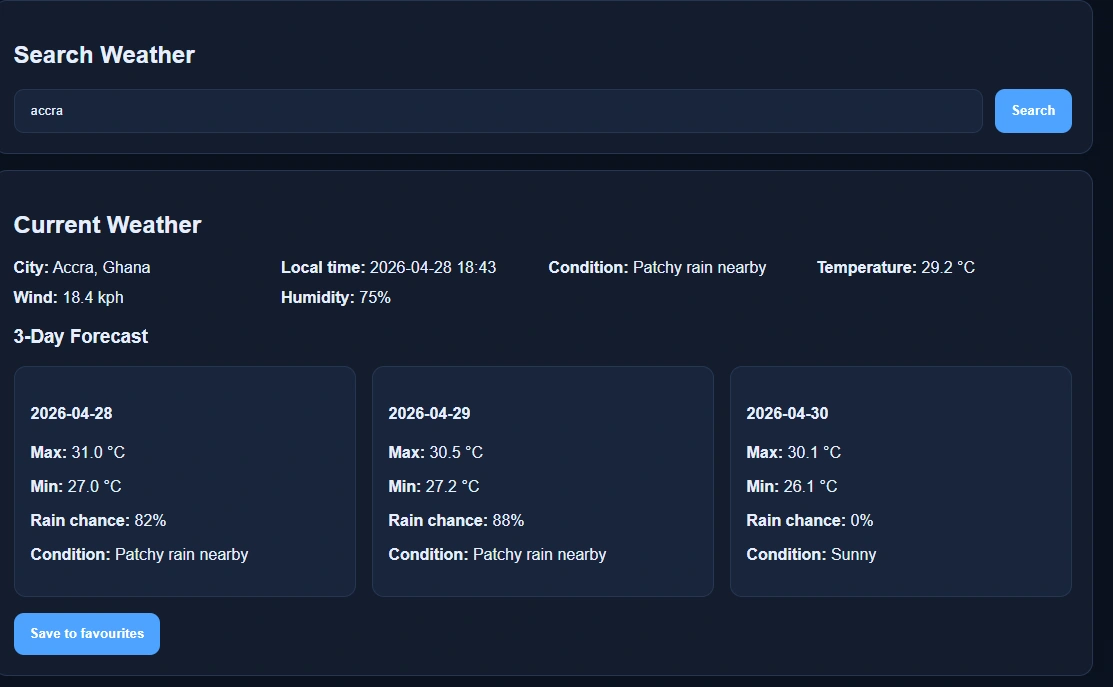

Deploy to App Service

Validated cloud hosting with Azure App Service, environment variables, and Gunicorn startup.

3

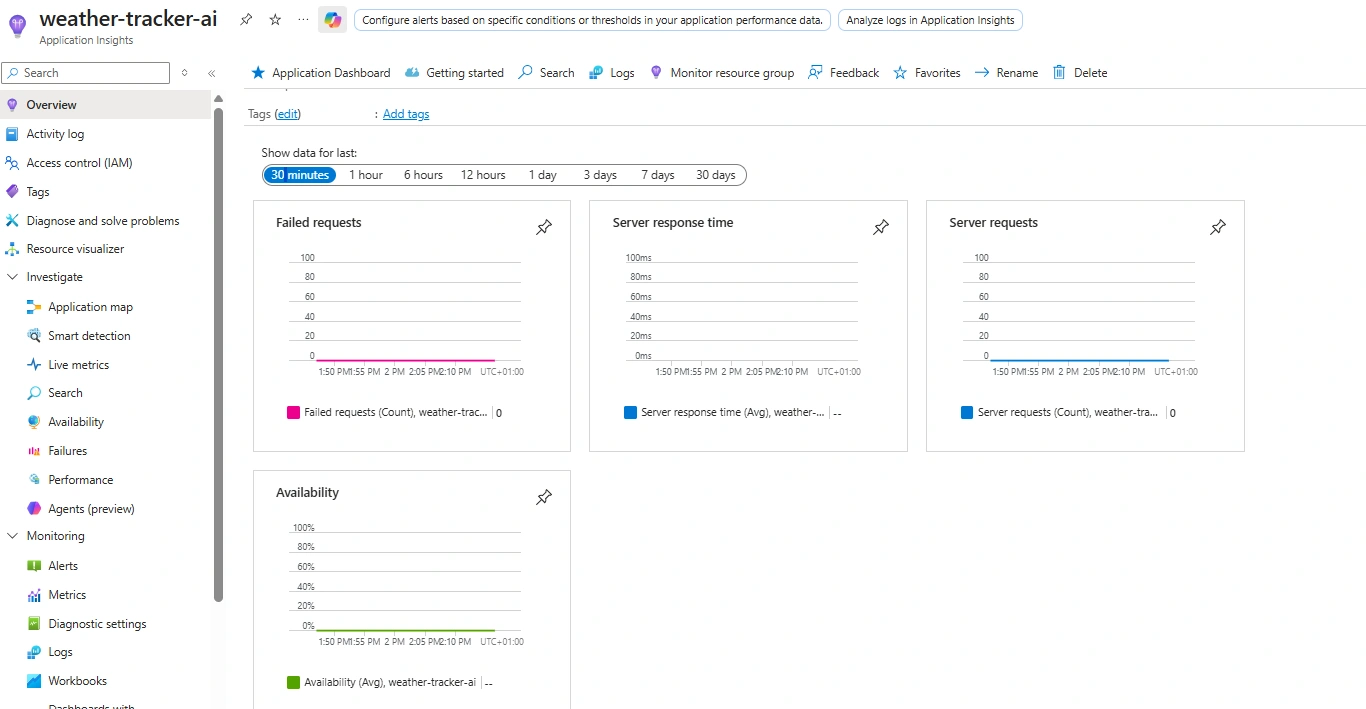

Add telemetry

Integrated Application Insights and validated requests, traces, errors, and KQL queries.

4

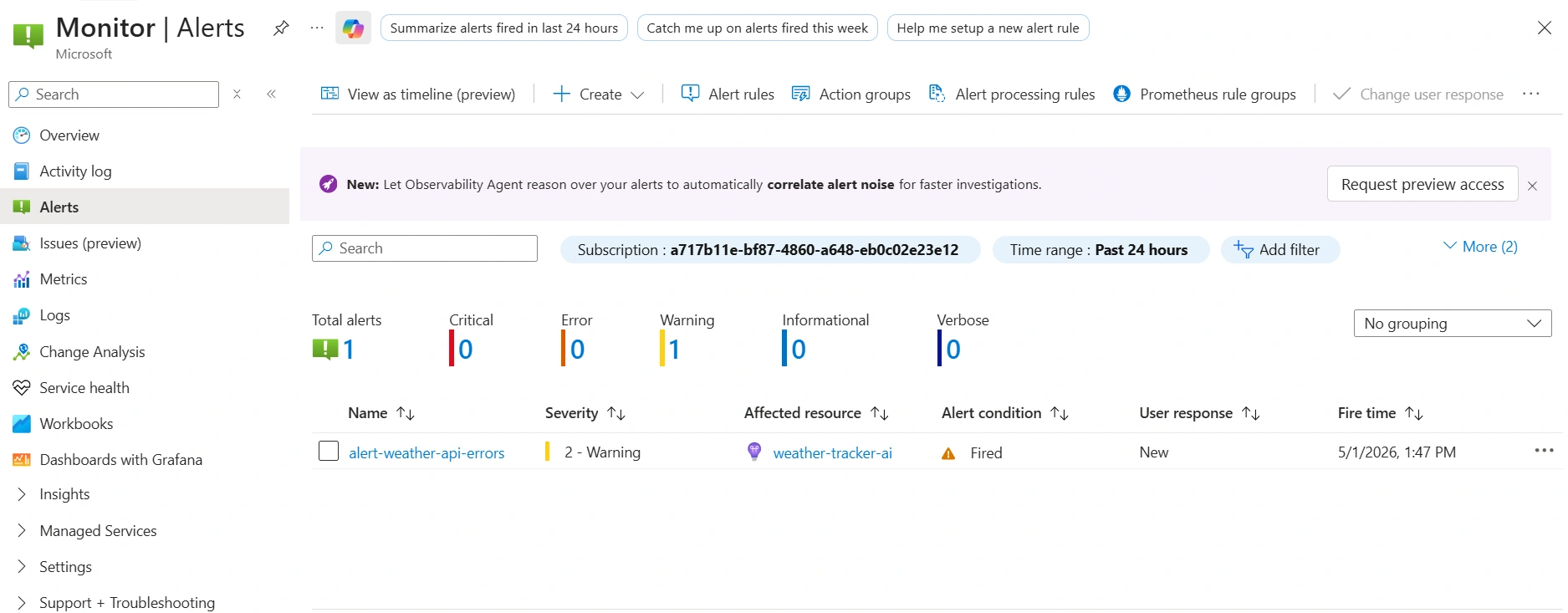

Configure alerts

Created Azure Monitor alert rules and Action Group email notifications for Weather API failures.

5

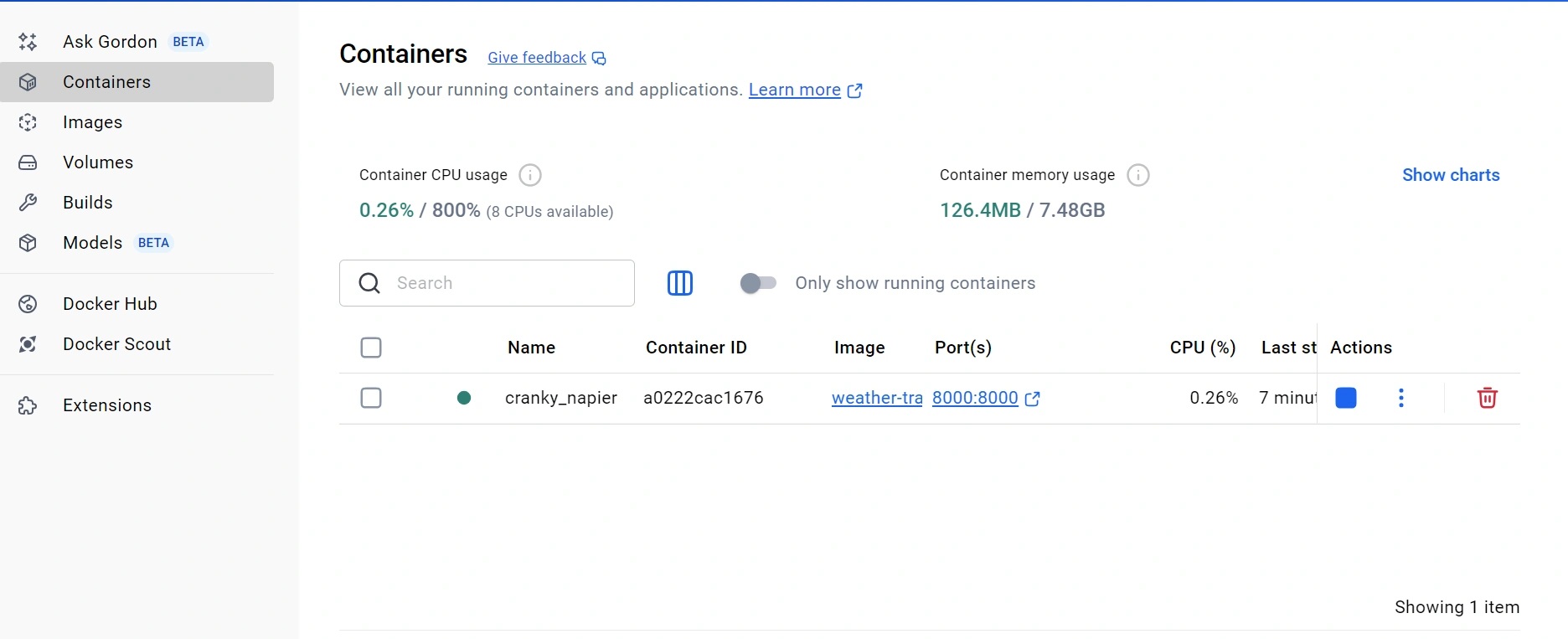

Containerize

Created Dockerfile and .dockerignore, then tested the container locally with environment injection.

6

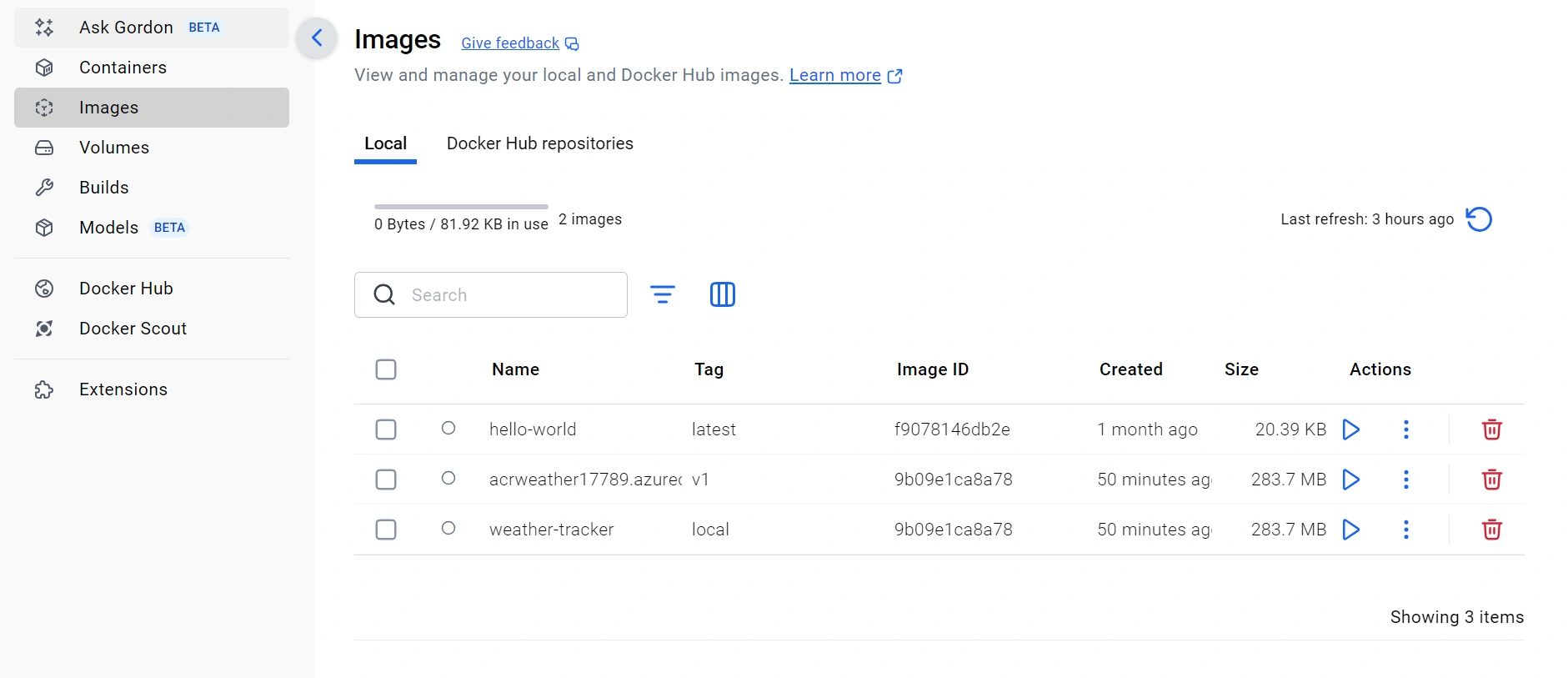

Publish to ACR

Tagged and pushed the container image to Azure Container Registry.

7

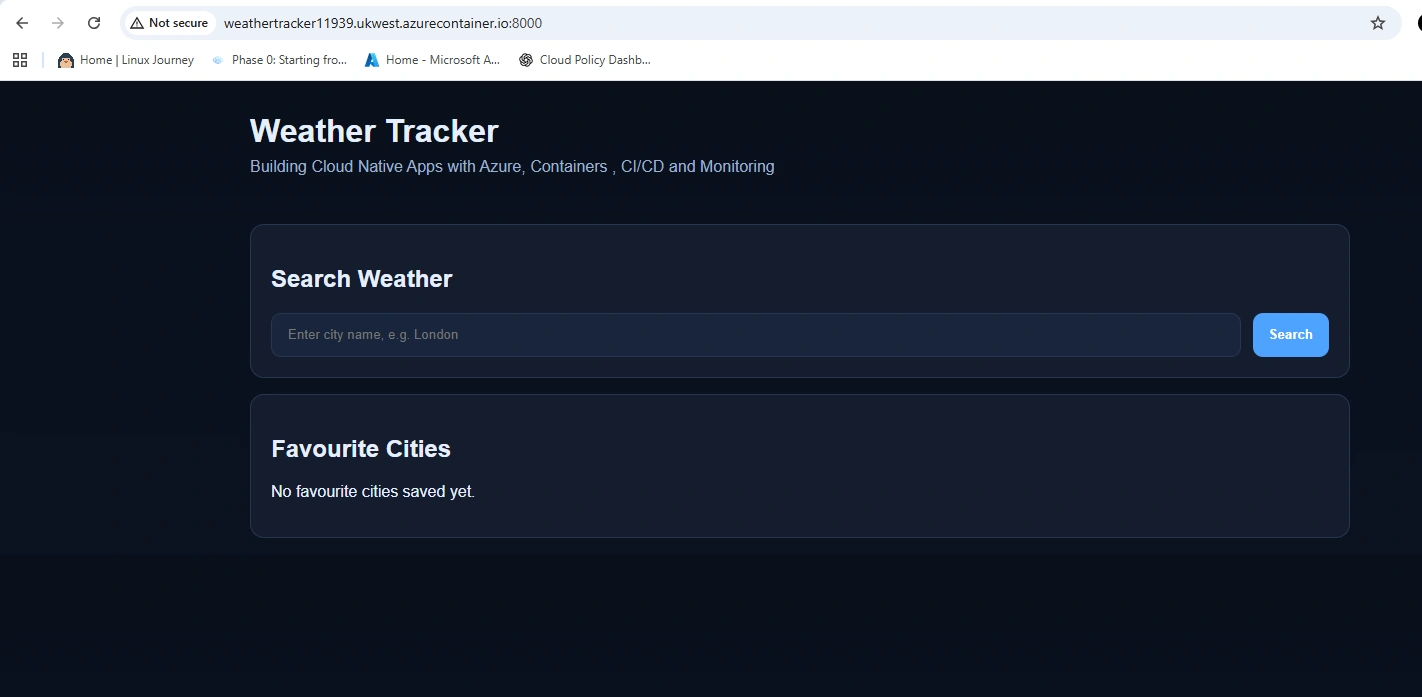

Validate with ACI

Ran the image in Azure Container Instances as a short-lived validation runtime, then deleted it for cost control.

8

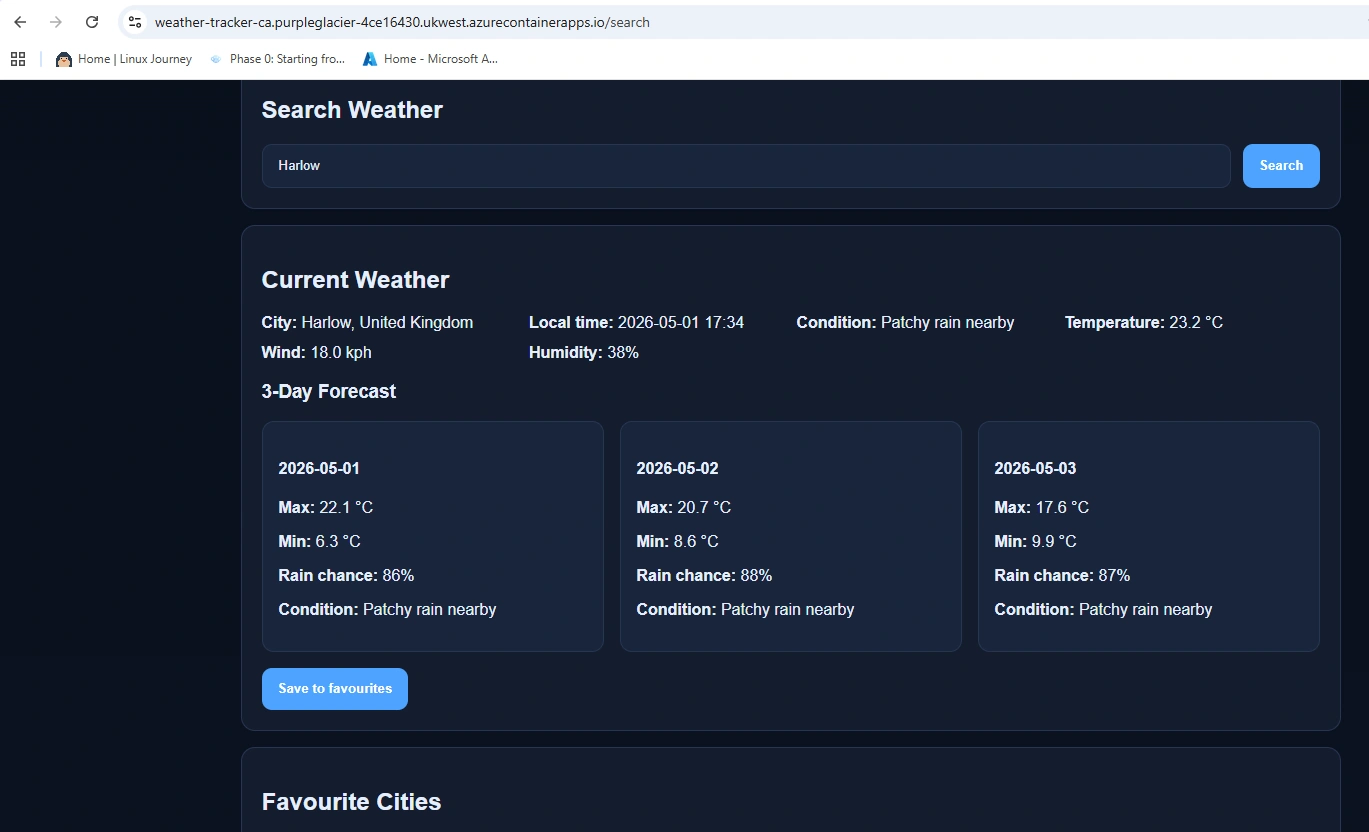

Deploy to Container Apps

Created a Container Apps environment and deployed the app with public HTTPS ingress and scale-to-zero.

9

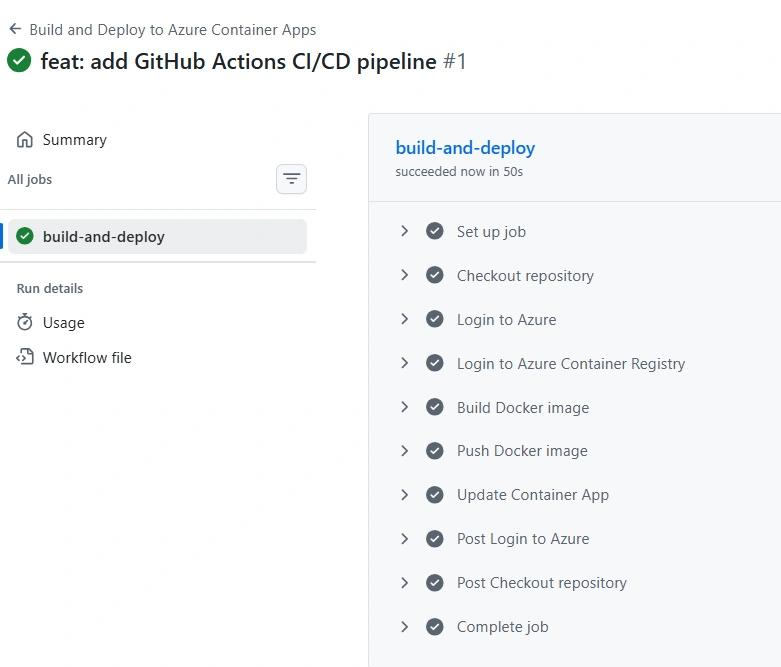

Automate with GitHub Actions

Configured CI/CD to build Docker images, push to ACR, and update Container Apps on every push.

10
Secure with Key Vault

Stored the WeatherAPI key in Key Vault and connected it to Container Apps using managed identity.

Tech stack

Azure-native services and implementation building blocks.

The stack is deliberately focused on Azure Cloud Engineer skills: compute hosting, containers, monitoring, CI/CD, and secret management.

Application and runtime
  • Python 3.12
  • FastAPI
  • Jinja2 templates
  • SQLite for development storage
  • HTTPX for WeatherAPI calls
  • Gunicorn with Uvicorn workers
Azure and DevOps
  • Azure App Service
  • Application Insights and Azure Monitor
  • Azure Container Registry
  • Azure Container Instances
  • Azure Container Apps
  • Azure Key Vault and managed identity
  • GitHub Actions CI/CD
Project snapshot

Weather Tracker Azure Cloud Engineering Project

A production-style Azure workload demonstrating FastAPI hosting, structured logging, monitoring, Docker, ACR, ACI validation, Container Apps, GitHub Actions, and Key Vault-backed secret management.

FastAPI Docker ACR Container Apps Azure Monitor Key Vault GitHub Actions
Primary runtime
Azure Container Apps
Image registry
Azure Container Registry
CI/CD
GitHub Actions build → push → deploy
Monitoring
Application Insights + Azure Monitor alerts
Security
Key Vault secret reference via managed identity
Jump to full engineering deep dive →
Challenges & lessons learned

What broke during the build — and how it was fixed.

The strongest learning came from real Azure errors: quota limits, startup dependency issues, telemetry gaps, CLI syntax differences, ACI crash loops, port mapping quirks, and RBAC permissions for Key Vault.

App Service deployment initially failed because Gunicorn was missing
›

The FastAPI app had a production startup command using Gunicorn, but gunicorn was not in requirements.txt. Adding it fixed the App Service startup path.

  • Symptom: site stuck starting or failed runtime.
  • Fix: add gunicorn==23.0.0.
  • Lesson: startup commands and dependencies must match.

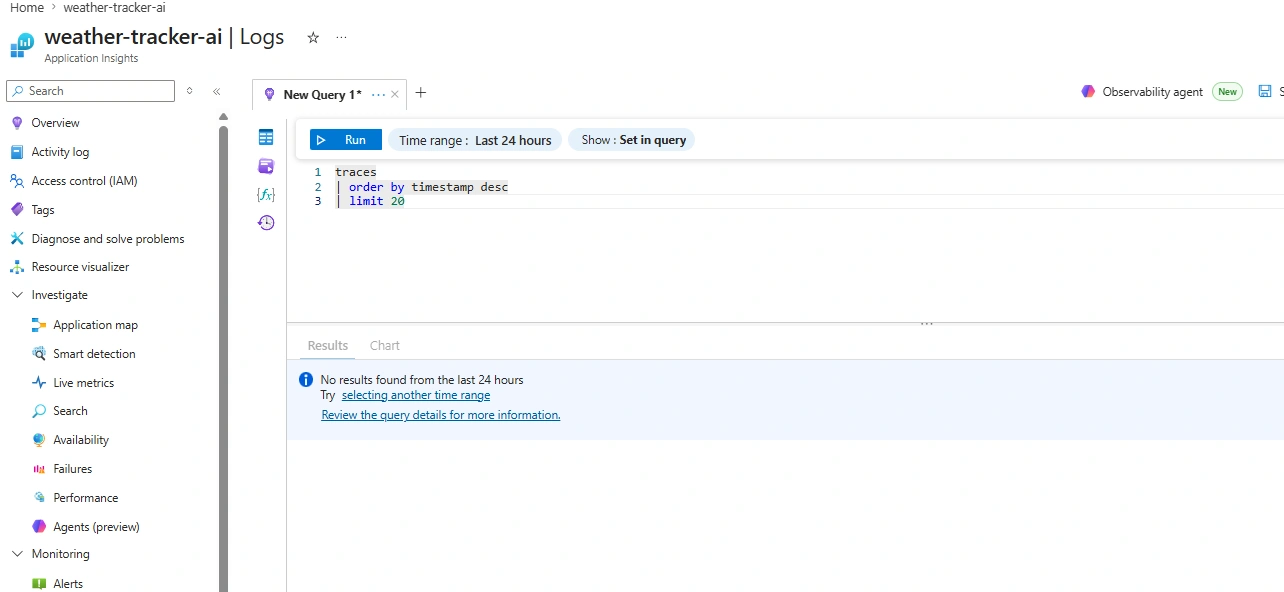

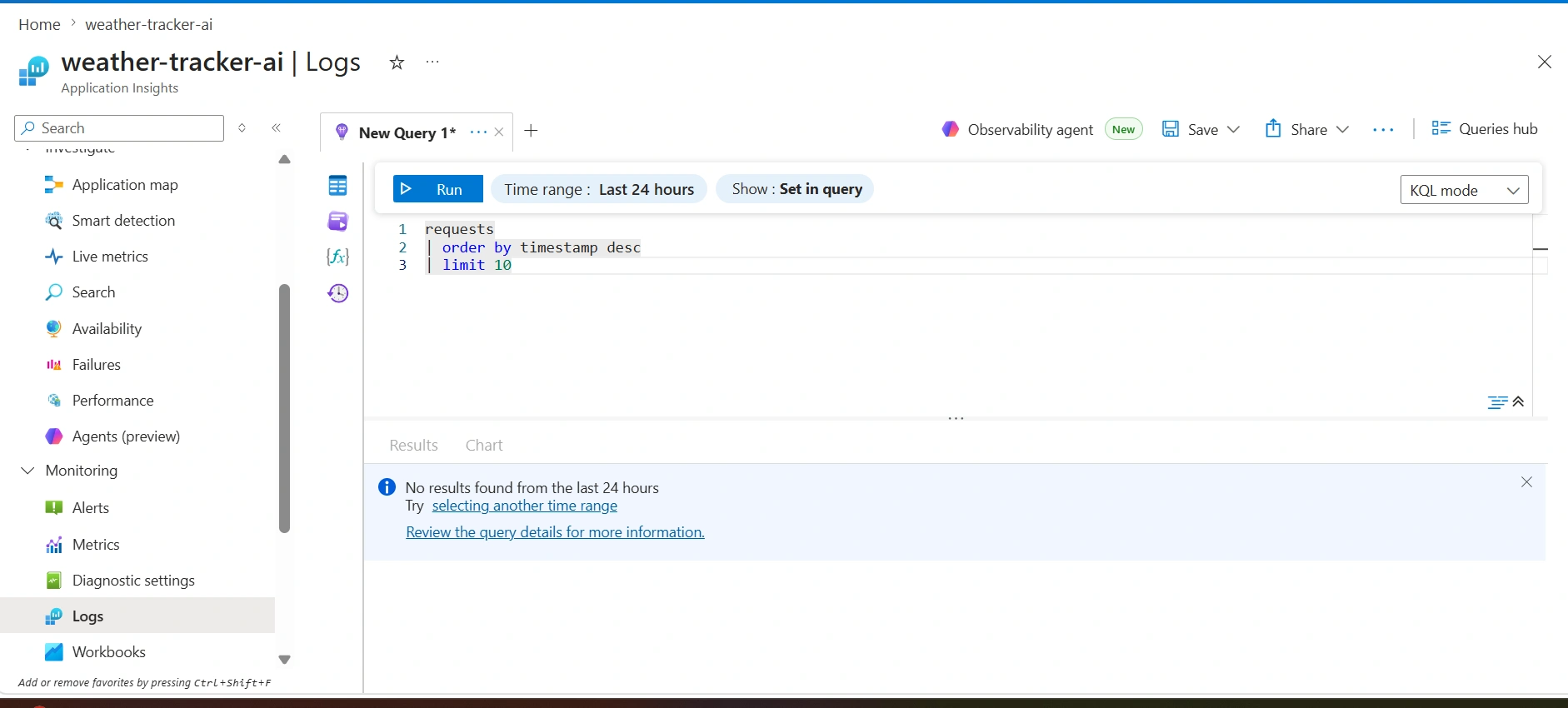

Application Insights showed useful data only after proper instrumentation
›

The first monitoring setup created Application Insights but did not show useful FastAPI request telemetry. The fix was to use Azure Monitor OpenTelemetry and initialize it before the app fully loaded.

Azure Monitor alert syntax required CLI-specific query formatting
›

The scheduled query alert failed until the query placeholder syntax was corrected using a named condition query.

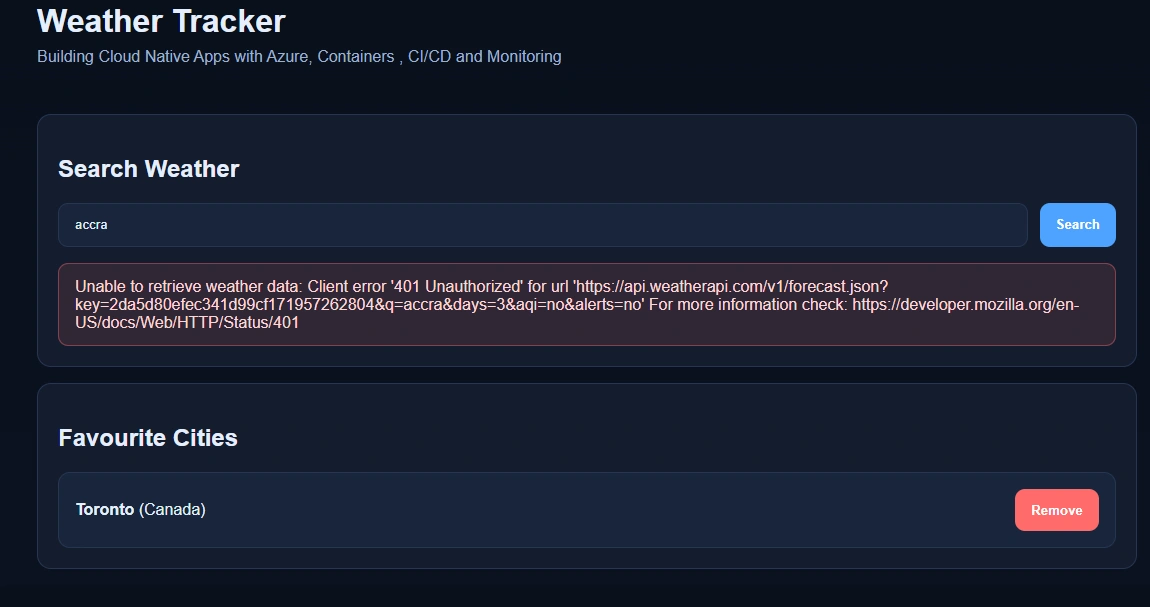

ACI entered CrashLoopBackOff because the WeatherAPI key was not passed correctly
›

The local Docker container worked because it read .env, but the Azure CLI deployment needed the shell variable exported explicitly.

Key Vault access failed until RBAC was assigned correctly
›

Creating the Key Vault with RBAC enabled did not automatically grant permission to set or read secrets. The fix was to assign Key Vault Secrets Officer to the user and Key Vault Secrets User to the Container App managed identity.
